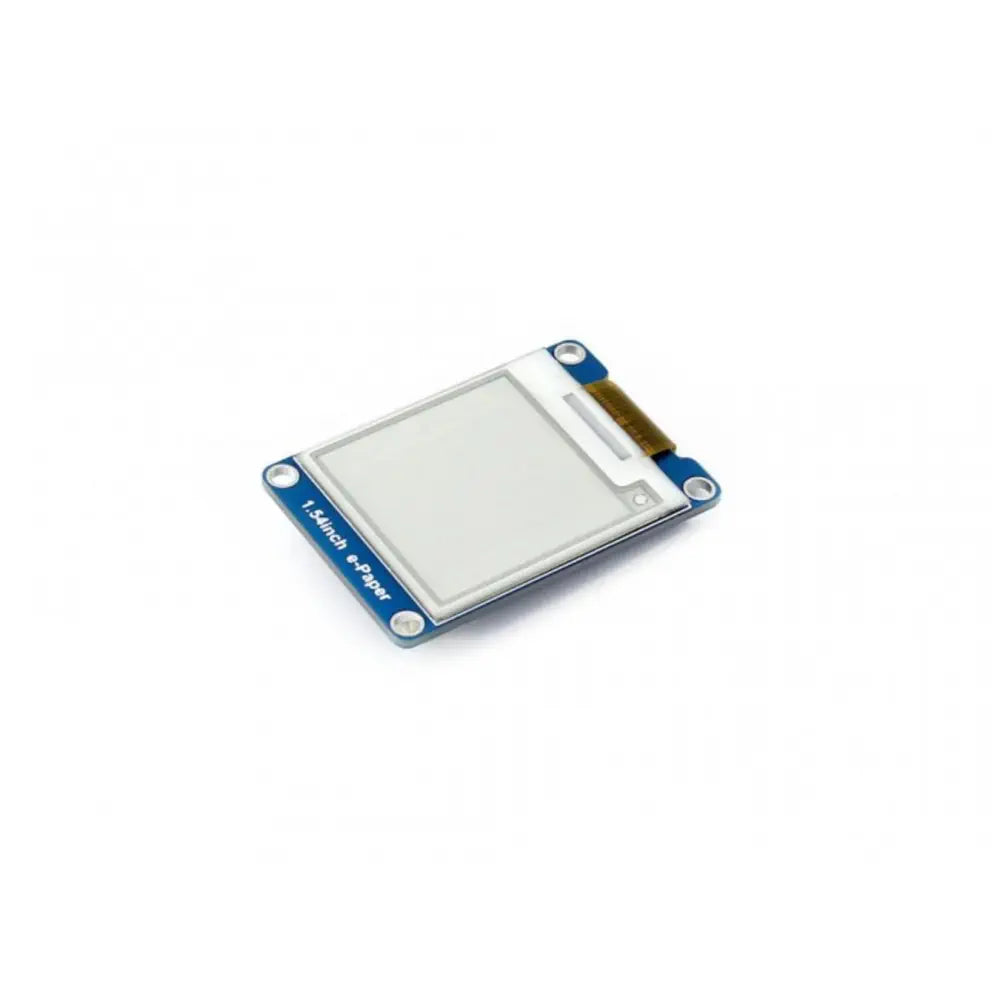

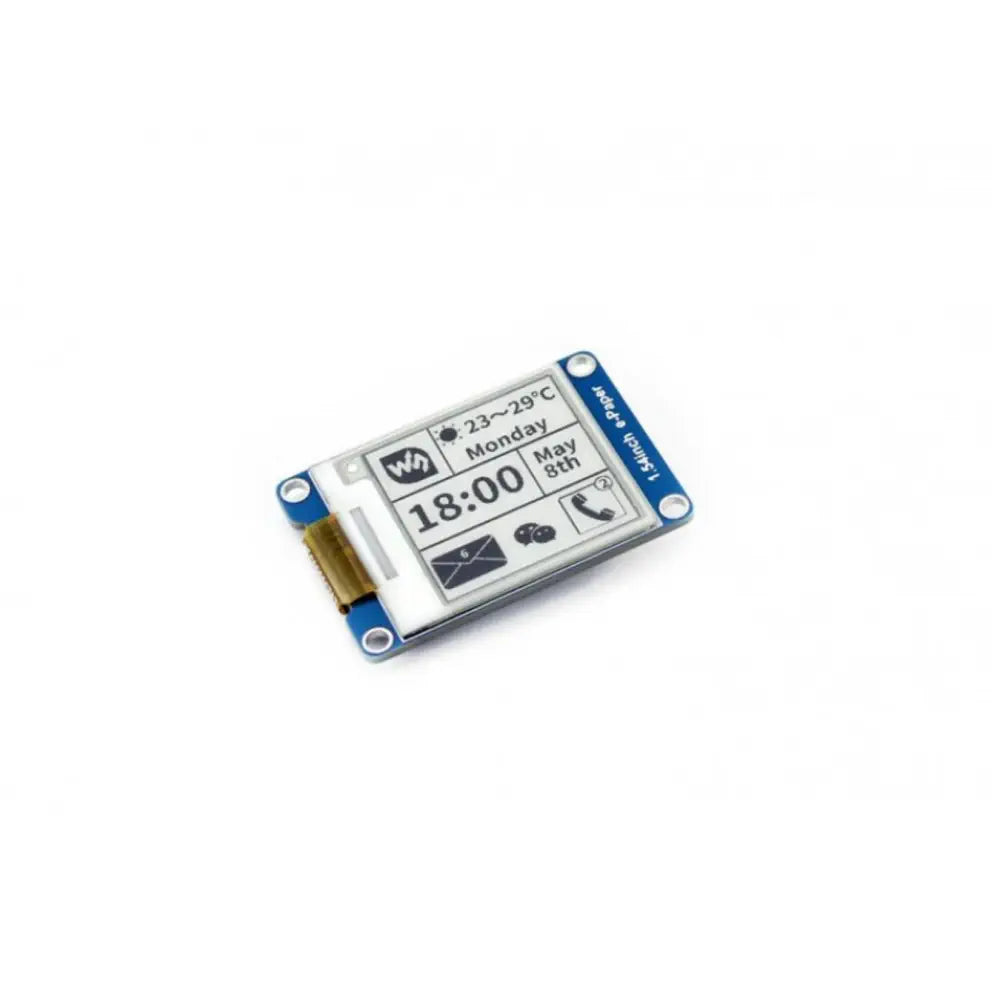

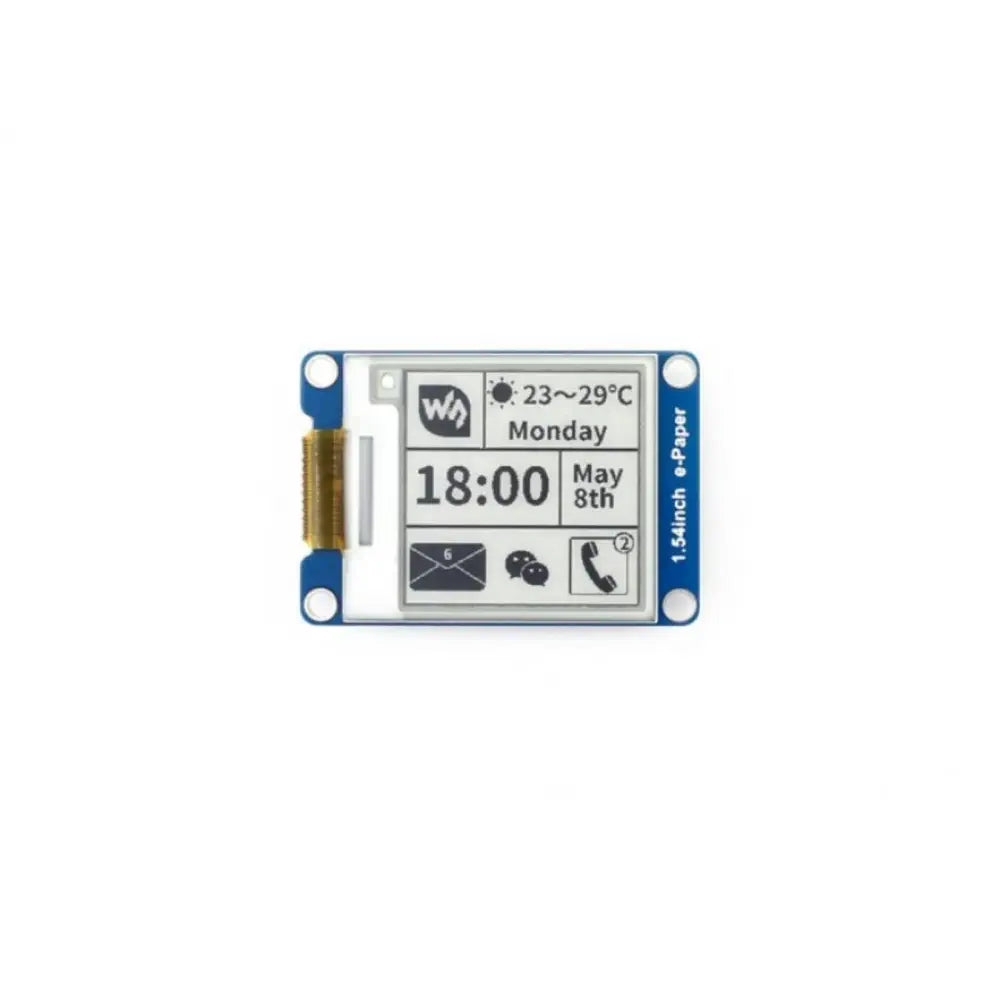

1.54" e-Paper Module 200x200

• Weight: 0.024 kg
• 1 X 1.54inch e-Paper Module
• 2 X XH2.54 20cm 8Pin

• Outline dimension: 48mm × 33mm
• Display size: 27.6mm × 27.6mm

PDF Files

• 1.54" e-Paper Module 200x200 Datasheet
• 1.54" e-Paper Module 200x200 Schematic

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI
• Dot pitch: 0.138 × 0.138
• Resolution: 200 × 200
• Display color: black, white
• Grey level: 2
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

Interface

• VCC: 3.3V
• GND: Ground
• DIN: SPI MOSI pin
• CLK: SPI SCK pin
• CS: SPI chip selection, low active
• DC: Data/Command selection (high for data, low for command)
• RST: External reset, low active
• BUSY: Busy status output, low active
