5A Cytron Servo Controller Shield

CytronSKU: RB-Cyt-219
Manufacturer #: SHIELD-SERVO

Price  :
Sale price £18.00

Tax included Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Support up to 5A (peak) and 4A(continuous) of total current
  • Control 8channels Servo independently
  • Able to drive Servo motor from 7V to 25V with build in 5V regulator
  • Optional Position Reporting: User may request position of an individual Servo

The 5A Cytron Servo Controller Shield is designed to control 8 independent RC (Remote Control) Servo motors simultaneously in a single board with a built in 5V 5 Ampere switching regulator. Each Servo signal pin is able to generate Servo pulses with duty cycle from 0.5ms to 2.5ms, which is greater than the range of most Servos, further allows for Servos to operate in full range of 180 degrees.

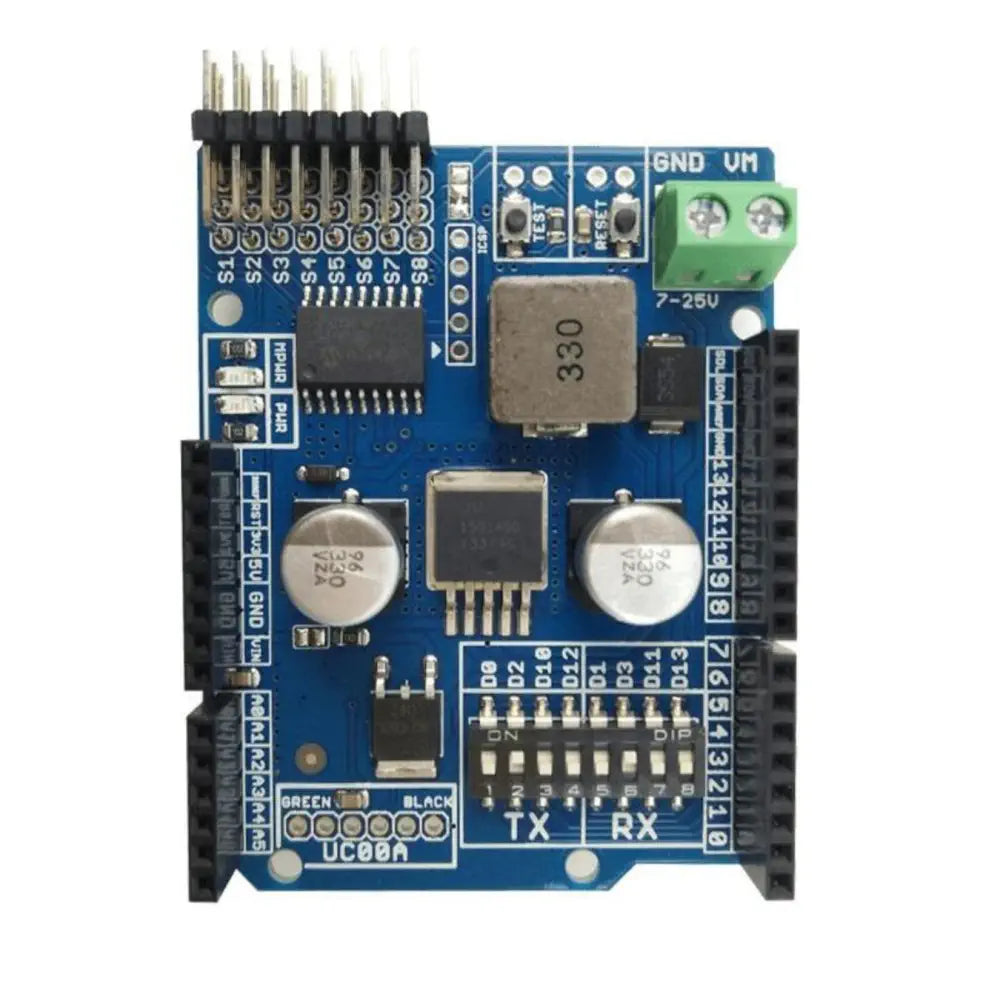

5A Cytron Servo Controller Shield- Click to Enlarge

In order to get SHIELD-Servo working, an Arduino compatible main board (Arduino/Genuino UNO, Mega,  CT-UNO, CT-ARM, etc)  is needed and the interface is serial (UART). The shield also provide alternative control over 6 pin UART with USB to Serial converter UC00A/UC00B/UC00C or other types of microcontroller. UART interface present a flexible, fast and easy to use feature.

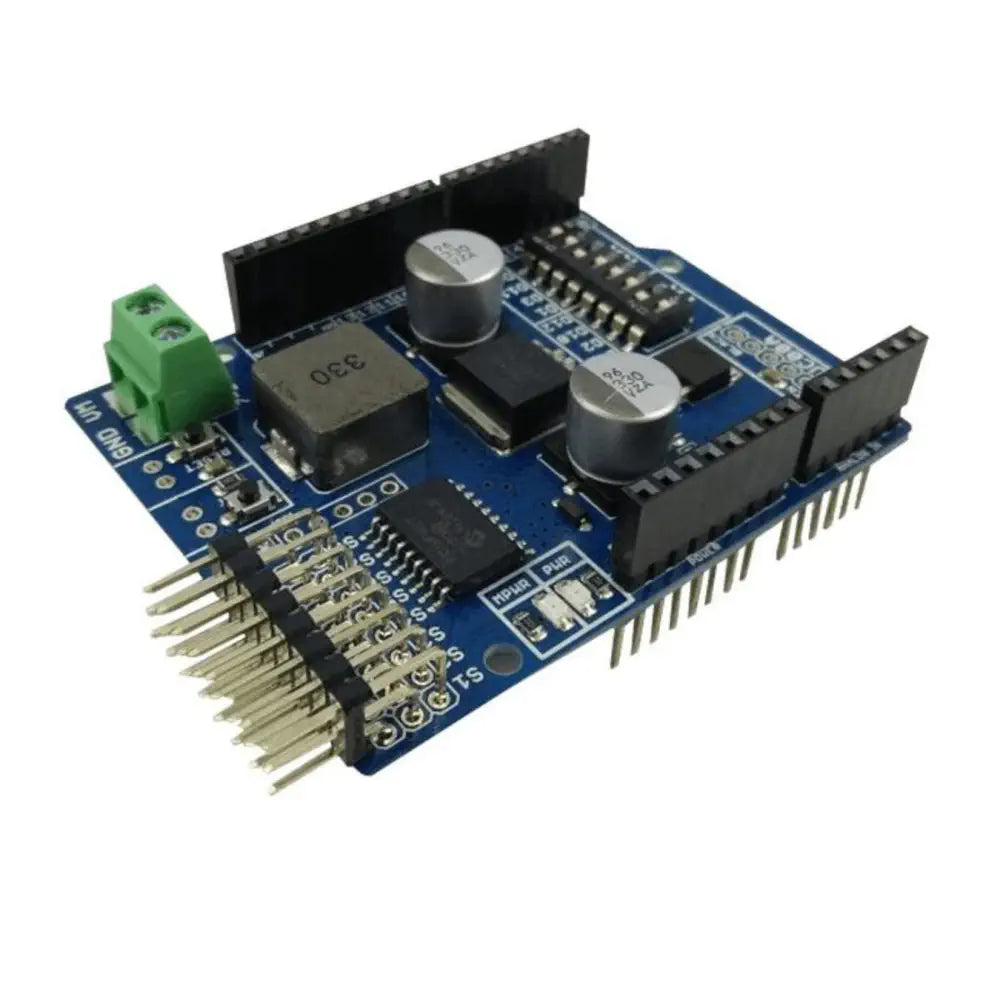

5A Cytron Servo Controller Shield- Click to Enlarge

Features:

  • 5V logic level compatible inputs
  • Independent Starting Position Command for each channel at the next start-up
  • Servo pulse range 0.5ms to 2.5ms
  • UART baud rate are saved in the non-volatile memory (Factory default is baud rate = 9600)
  • 7.4 cm x 6.6 cm
  • Operating Condition
  • Motor Channel: 8
  • Operating Voltage (VDC): 7 to 25
  • Peak Current (A): 5
  • Continuous Current (A): 4

Operating Modes

  • Arduino Shield: Yes
  • PWM (Lock-Antiphase and Sign-Magnitude): Yes
  • UART: Yes
  • Analog: No
  • RC Servo Signal: No

Special Protection

  • Polarity Protection: No

Appearance

  • LEDs Indicator: No

Other Features

  • Extra Socket: comes with UC00A/UC00C/UART interface
  • Others: Optional position reporting and Independent starting position
  • Servo pulse range: 0.5ms-2.5ms
