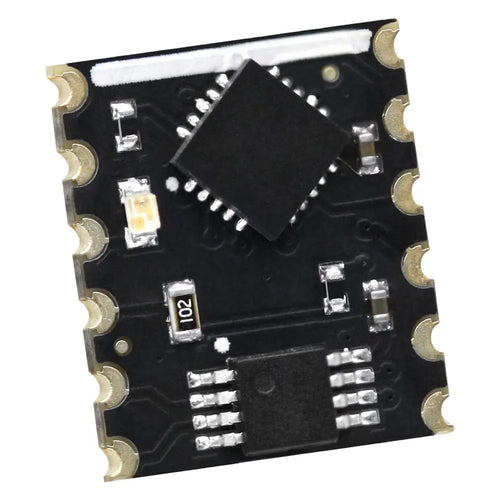

Atlas Scientific RTD 4-Wire Temperature OEM Circuit

Atlas ScientificSKU: RB-Atl-204
Manufacturer #: RTD-4-OEM

Price  :
Sale price £35.69

Tax included Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Atlas Scientific RTD 4-Wire Temperature OEM Circuit
  • Offers precise temperature measurement
  • Supports PT-100 and PT-1000 probes
  • Ensures high resolution of 0.001°C
  • Operates with I2C communication protocol
  • Requires no electrical isolation

The Atlas Scientific RTD 4-Wire Temperature OEM Circuit is an advanced solution designed for engineers requiring precise temperature measurement in mass-produced devices. This compact surface-mount device, measuring 11×13 mm, facilitates accurate readings from any class of 2, 3, or 4 wire platinum RTD probes. It offers a broad sensing range from -126.000 °C to +1,254 °C, ensuring versatility across various applications.

This OEM circuit supports PT-100 and PT-1000 RTD probes, accommodating different configurations including 2, 3, and 4 wire setups. It operates with a high resolution of 0.001 °C and maintains an accuracy of +/– (0.1 + 0.0017 x °C), making it suitable for applications demanding precision. The circuit provides a response time of one reading every 420 milliseconds, ensuring timely data acquisition.

Communication with the circuit is facilitated through the SMBus/I2C data protocol, with a default I2C address of 0x68. It operates within a voltage range of 3.0V to 3.6V and outputs data in ASCII format. The device does not require electrical isolation, simplifying integration into existing systems. Weighing only 0.56 grams, it is an unobtrusive addition to any design.

  • 1x Atlas Scientific RTD 4-Wire Temperature OEM Circuit
  • 11.1 x 13.3 mm (0.43 x 0.52")
  • RTD Resistance Temperature Detector (RTD)
  • Measures temperature in °C
  • Temperature range: -126.000 °C to 1254 °C
  • Resolution: 0.001
  • Accuracy: ± (0.1 + 0.0017 x °C)
  • Response time: 1 reading every 420 ms
  • Compatible with any type and brand of PT-100 or PT-1000 RTD probes
  • Supports 2-wire, 3-wire, or 4-wire RTD configurations
  • Single-point calibration
  • Data protocol: SMBus/I2C
  • Default I2C address: 0x68
  • Operating voltage: 3.0V to 3.6V
  • Data format: ASCII
  • Electrical isolation not required
  • Weight: 0.56 grams
