Bus Pirate - v3.6a

Sparkfun ElectronicsSKU: RB-Spa-1331
Manufacturer #: TOL-12942

Price  :
Sale price £31.20

Tax included Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Frequency measurement: 1Hz-40MHz
  • A bootloader for easy firmware updates
  • 5.5V tolerant pins
  • 6V measurement probe

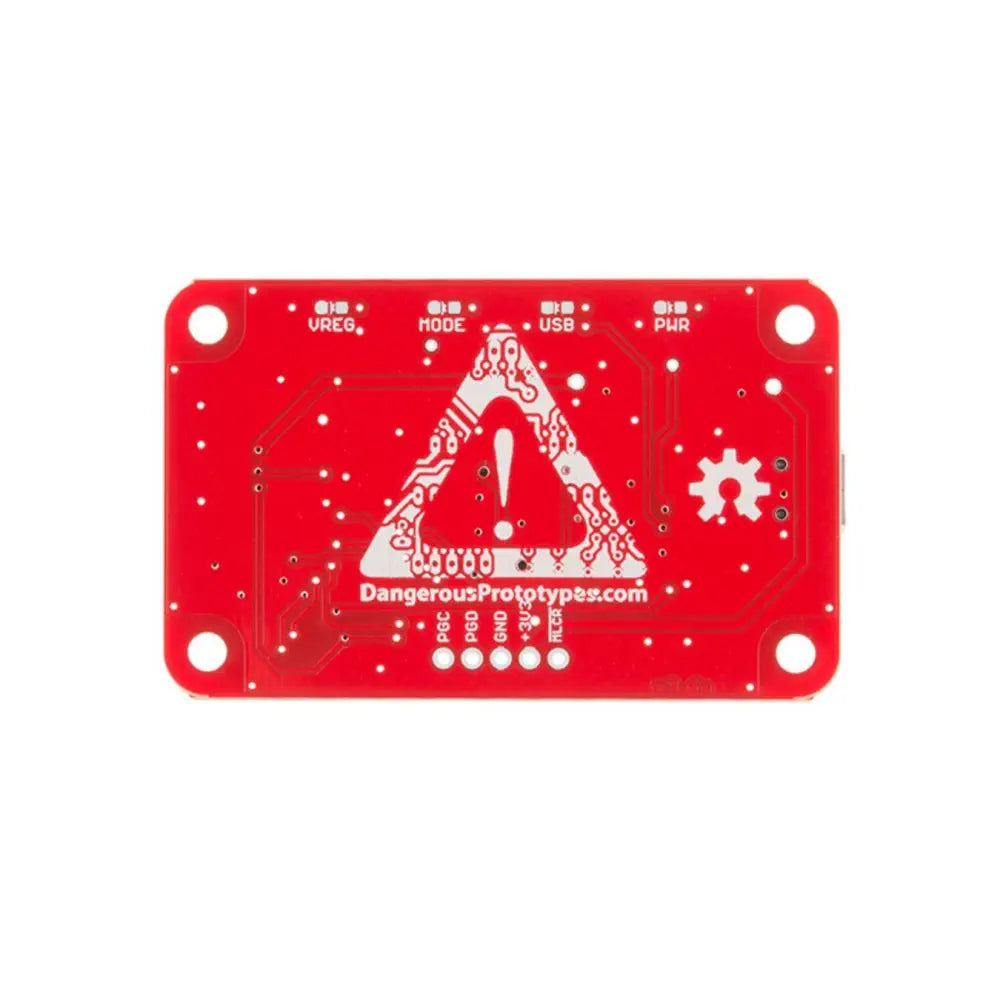

The Bus Pirate - v3.6a is a troubleshooting tool that communicates between a PC and any embedded device over 1-wire, 2-wire, 3-wire, UART, I2C, SPI, and HD44780 LCD protocols - all at voltages from 0-5.5VDC. This product eliminates a ton of early prototyping effort when working with new or unknown chips.

Bus Pirate - v3.6a- Click to Enlarge

Working with the Bus Pirate - v3.6a is simple and effective - type commands into a terminal on your computer, those commands are interpreted by the Bus Pirate and sent via the proper protocol. The Pirate will also interpret data sent from your embedded device back to your computer terminal. A big bonus is the bootloader installed on the PIC, which allows you to easily update the firmware and change the functionality of the board.

Bus Pirate - v3.6a- Click to Enlarge

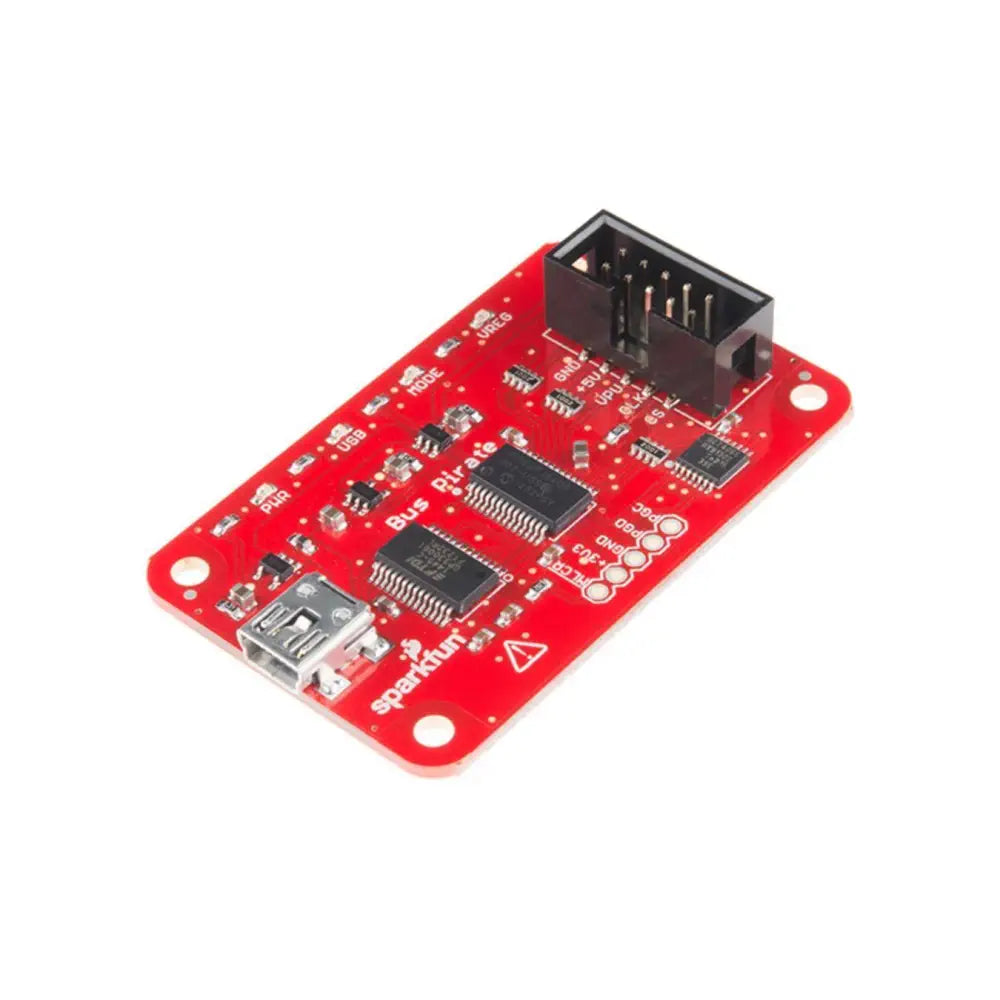

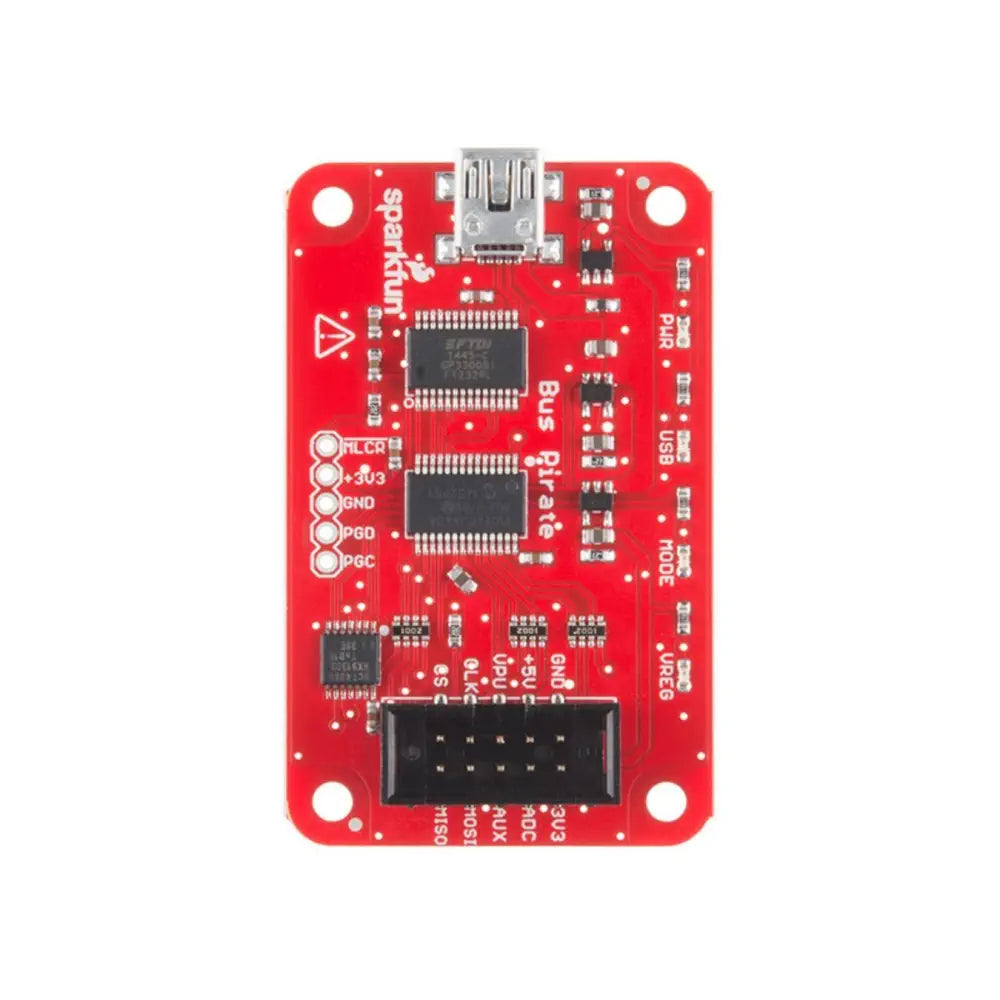

The main components of the Bus Pirate are the PIC24FJ64 processor and a FT232RL USB-to-Serial chip. A Mini-B USB connector that has also been populated on the board, provides the power to the Bus Pirate and allows you to interact with via your PC. The major difference in this version of the Bus Pirate comes from the shrouded 0.1" pitch 2x5 pin header, which has been flipped around to help standardize this board. Additionally every pin on this header has been labeled, eliminating the need for a separate I/O pin description document like with earlier versions.

Bus Pirate - v3.6a- Click to Enlarge

Features:

  • 1Hz - 40MHz frequency measurement
  • 1kHz - 4MHz pulse-width modulator, frequency generator
  • On-board multi-voltage pull-up resistors
  • On-board 3.3volt and 5volt power supplies with software reset
  • Bus traffic sniffers (SPI, I2C)
  • Transparent USB->serial mode
  • 10Hz - 1MHz low-speed logic analyzer
  • Scriptable from Perl, Python, etc.
  • Access to PIC24FJ64 ICSP programming port

Bus Pirate - v3.6a- Click to Enlarge

PDF File

Supported protocols:

  • 1-Wire
  • I2C
  • SPI
  • JTAG
  • Asynchronous serial
  • MIDI
  • PC keyboard
  • HD44780 LCD
  • 2- and 3-wire libraries with bitwise pin control
  • Scriptable binary bitbang, 1-Wire, I2C, SPI, and UART modes
