CubePilot The Cube Orange+ Autopilot Flight Controller Module

CubePilotSKU: RB-Htl-37
Manufacturer #: HX4-06214

Coming soon See due date

This item isn't available yet. Subscribe to our Email alert to be notified when it finally arrives in stock.

Description

  • CubePilot The Cube Orange+ Autopilot Flight Controller Module
  • STM32H757 H7 microcontroller with 2 MB flash and 1 MB RAM
  • Triple redundant IMU set with three accelerometers and three gyroscopes
  • Vibration damped IMU board with onboard heating resistors for temperature control
  • Dual barometers and one onboard magnetometer for redundant state estimation
  • 80 position Hirose DF17 connector for full CubePilot carrier board compatibility
  • Autopilot module only, a separate carrier board is required to operate

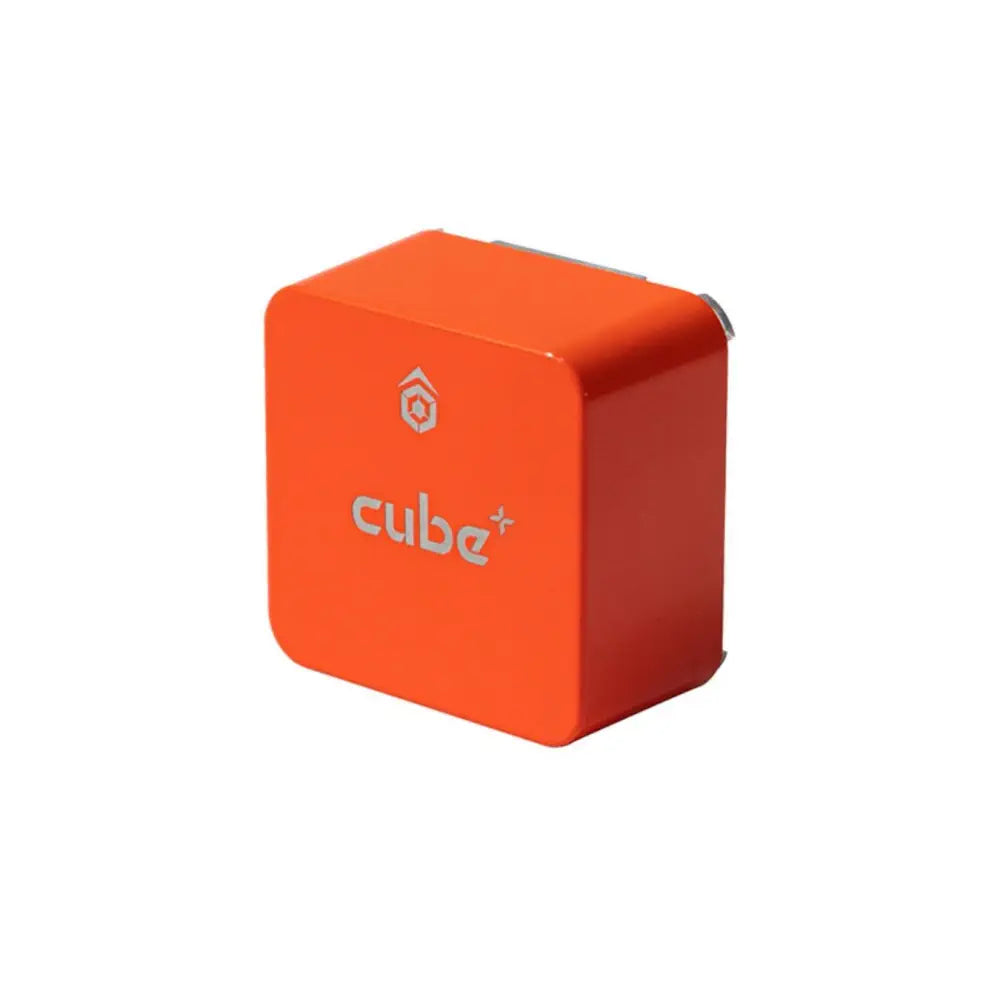

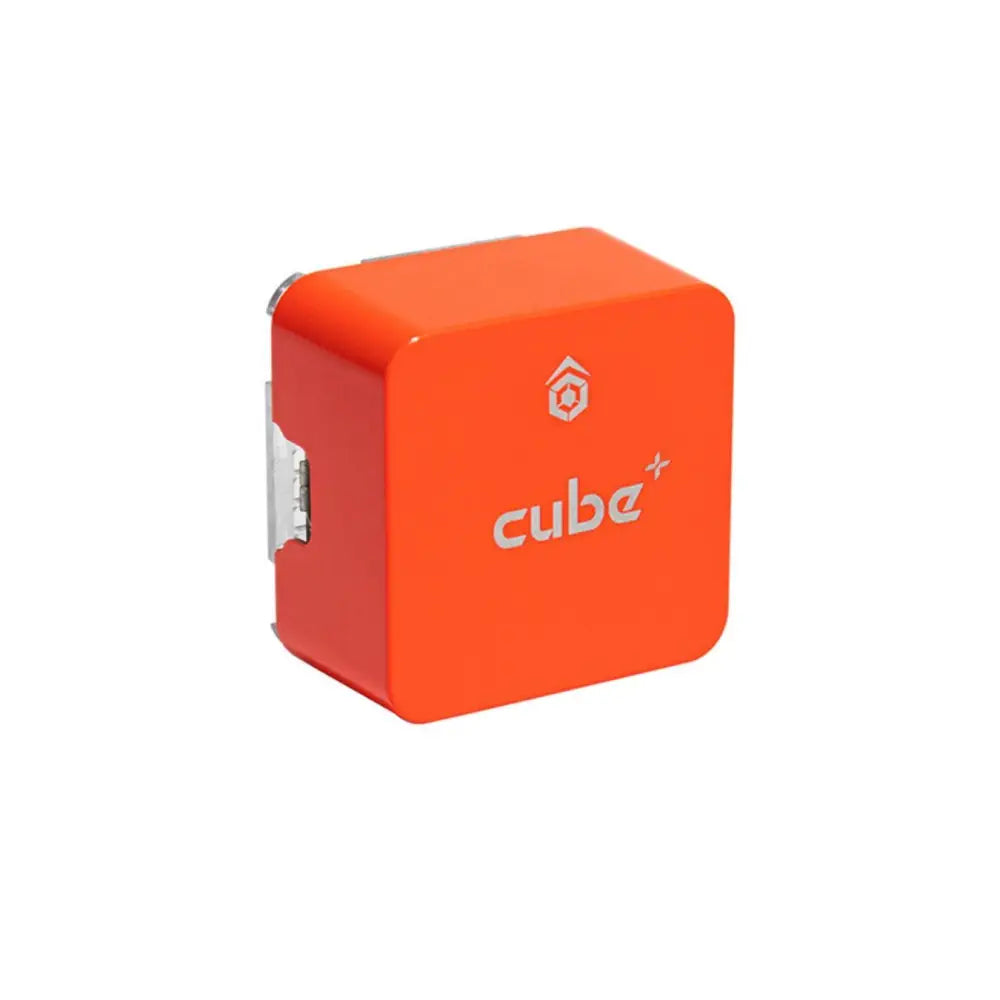

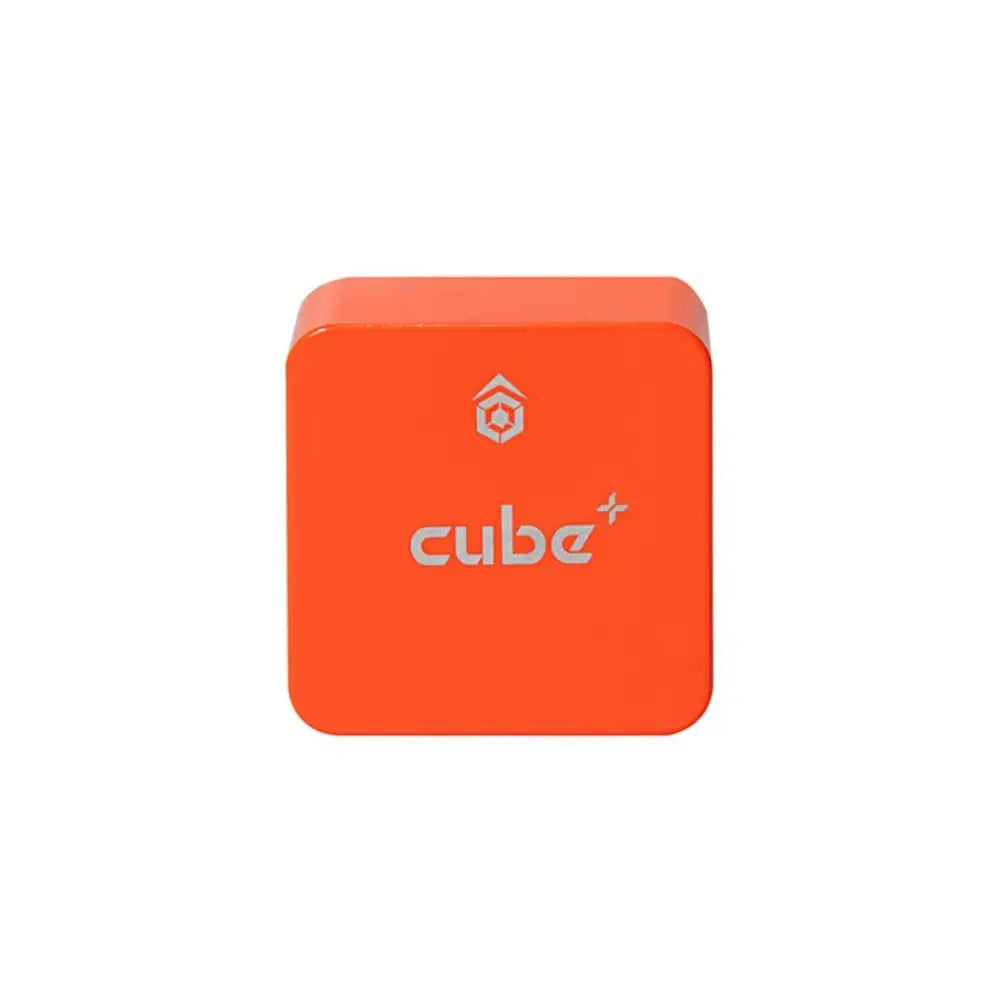

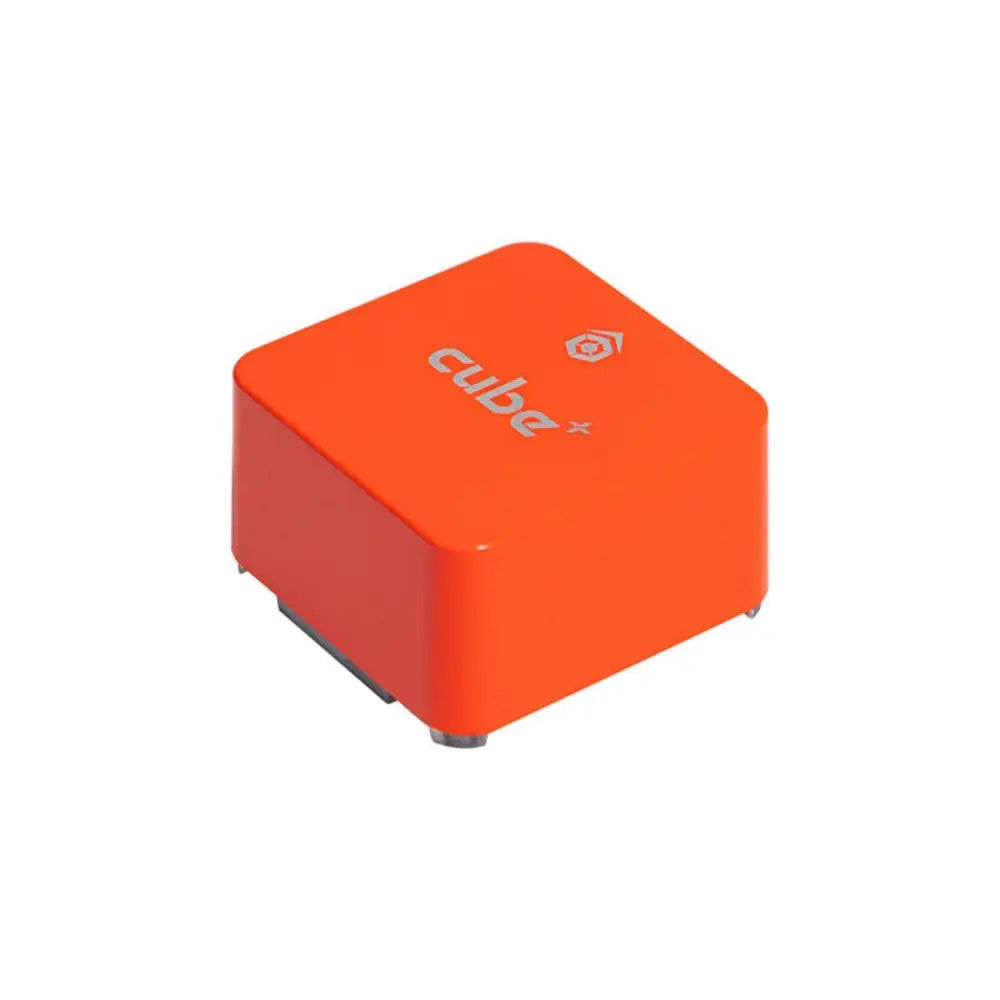

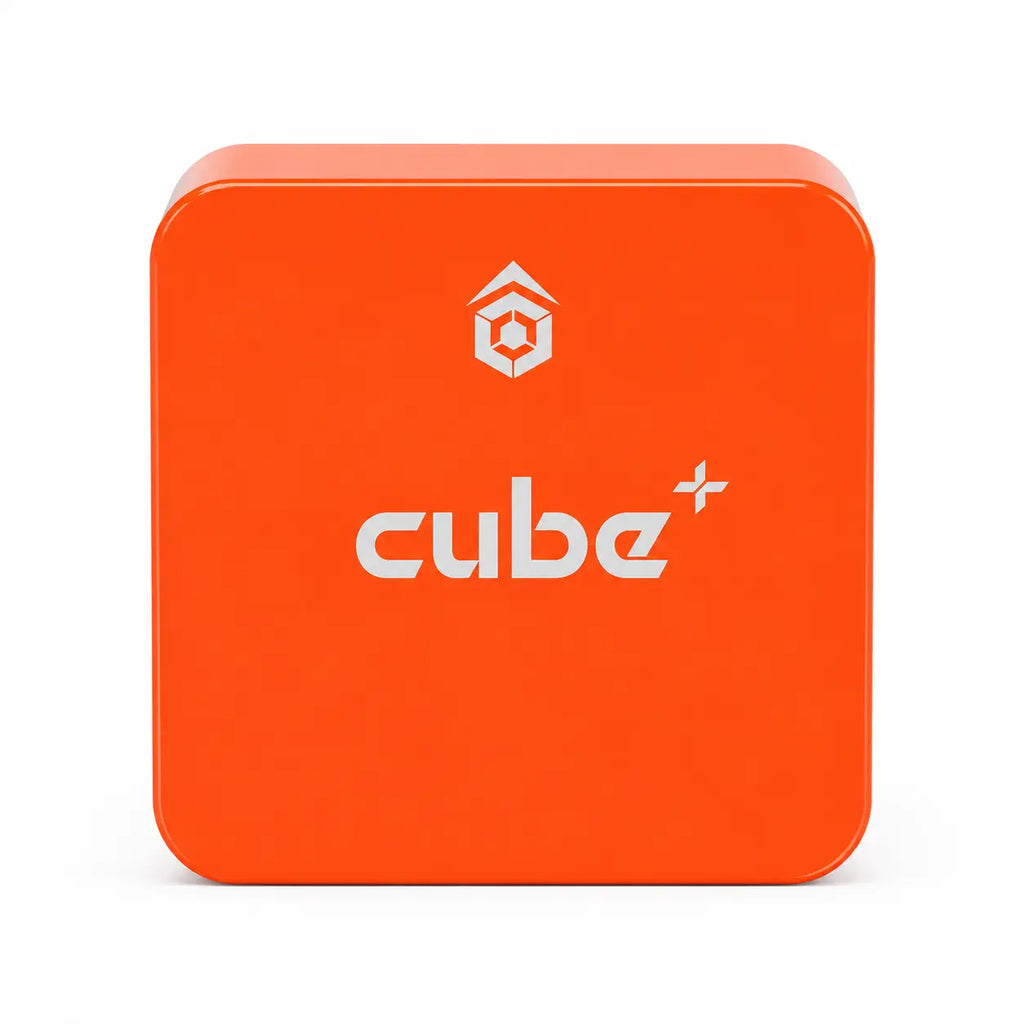

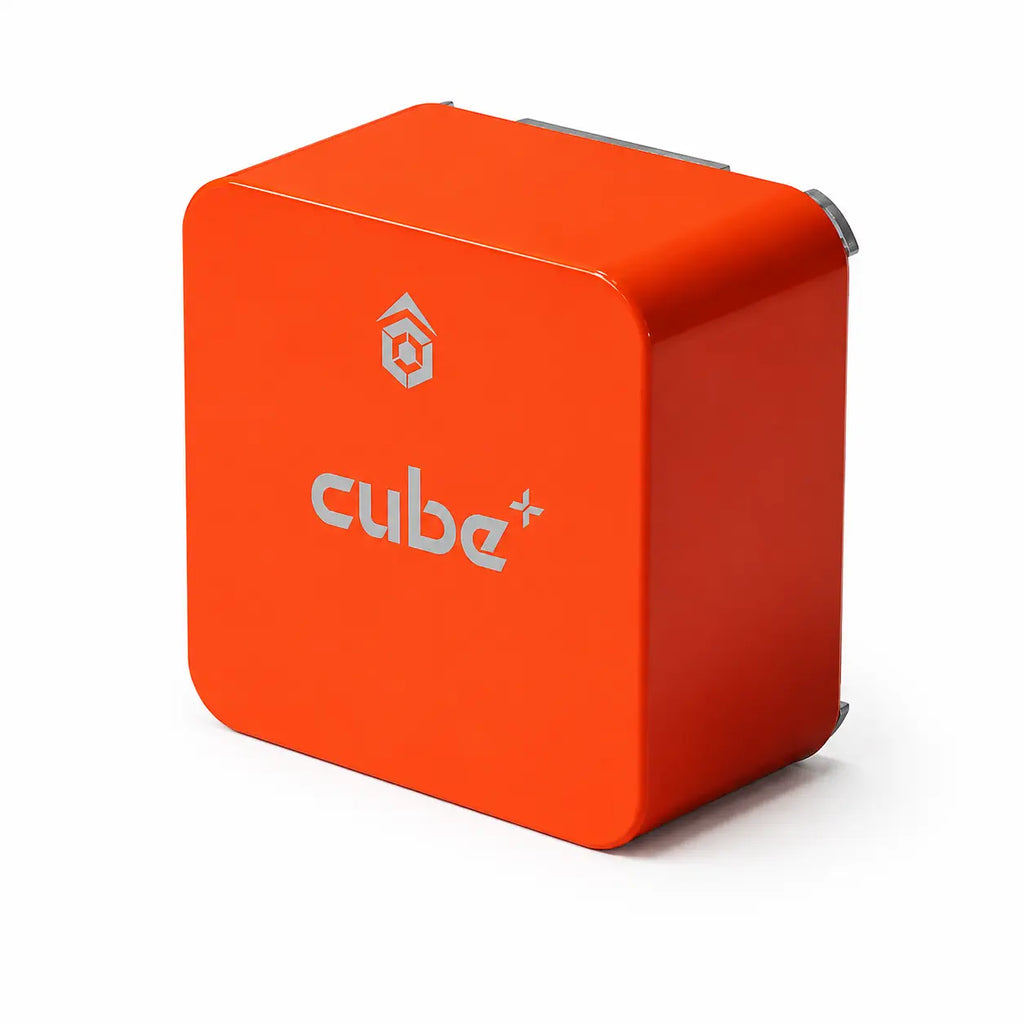

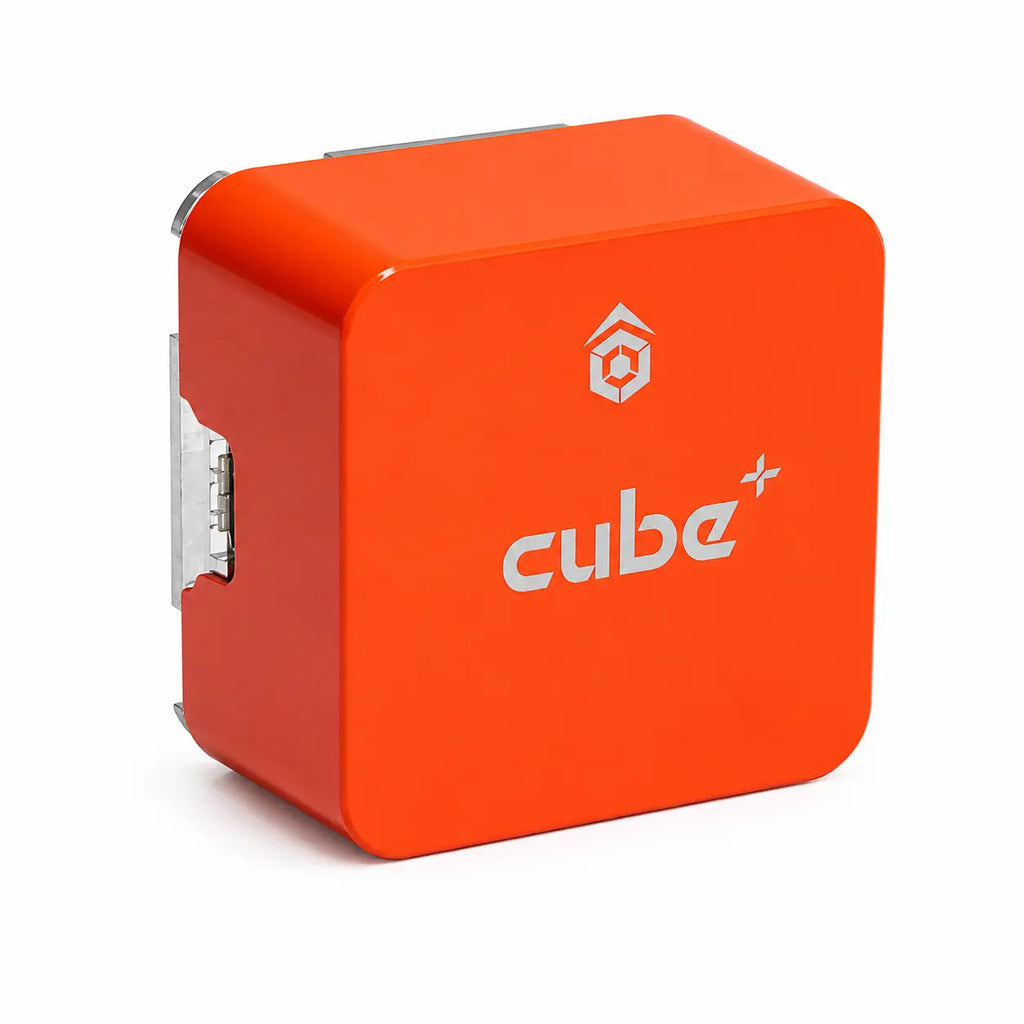

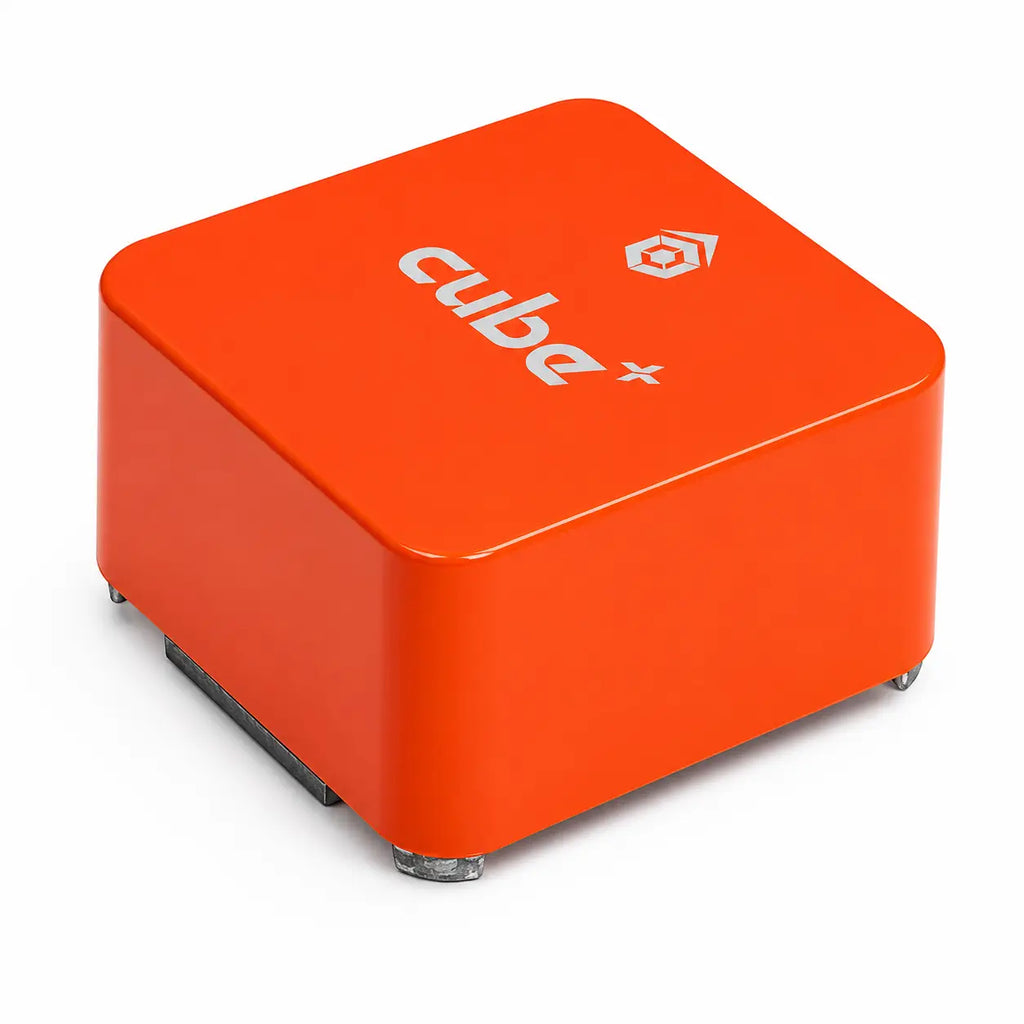

The Cube Orange+ is the flagship autopilot module in CubePilot's Cube family, built for unmanned aerial vehicles and other autonomous platforms that need dependable flight control. It carries the entire autopilot workload, reading its onboard inertial and pressure sensors, estimating vehicle attitude and position, then driving control outputs in a tightly closed loop. Because the sensor groups are mounted on isolating hardware and held at a regulated temperature, the module keeps its state estimate stable on airframes that vibrate heavily or operate across a wide thermal range. Operators fly it on multirotors, fixed wing aircraft and VTOL designs, and also run it on ground rovers and marine craft. Commercial integrators and research groups reach for it where a flight controller has to behave predictably over long deployment cycles.

Sensing on this platform rests on redundancy rather than a single measurement chain, so the autopilot cross references several independent readings before it commits to an estimate. Should one source drift or fail outright, the firmware falls back on the remaining channels and keeps flying instead of losing control authority. Operator interaction runs through a ground control station over a telemetry link, where missions get planned, parameters tuned and live flight data reviewed. Deployment stays flexible because the module carries no power management or connectors of its own and instead plugs into a carrier board, letting builders pair it with an off the shelf carrier or design their own against the published interface. That separation between compute and interface is what makes the Cube ecosystem suit OEMs, systems integrators and university research teams working on the open source ArduPilot stack.

Why Buy From RobotShop
Authorized Distributor

Full manufacturer-backed warranty coverage and dedicated product support

Hassle-Free Delivery

Complete end-to-end logistics management, including customs clearance

Single Point of Contact

All pre-sales and post-sales support handled by our dedicated team

Documentation & Resources

Full access to detailed technical guides and a comprehensive knowledge base

Cube Orange+ autopilot module shown with the full CubePilot Cube colour lineup
Autopilot Module
The Cube Orange+
Triple redundant, temperature regulated flight control in a module that plugs straight into any CubePilot carrier board.
Processor
STM32H757
RAM
1 MB
IMU Redundancy
Triple
Barometers
Two
Footprint
35 mm
Inside the Cube Orange+

The hardware choices that let this autopilot module hold a stable state estimate on demanding airframes.

H7 Class Processing

An STM32H757 microcontroller with 2 MB of flash and 1 MB of RAM runs the complete autopilot loop with headroom left over.

Triple Redundant IMUs

Three accelerometers and three gyroscopes let the firmware cross reference its state estimate and drop a failed sensor in flight.

Vibration Isolated Sensing

A vibration damped IMU board and a dedicated isolation system keep frame vibration out of the attitude solution.

Temperature Regulated IMUs

Onboard heating resistors hold the inertial sensors near their optimum working temperature across a wide ambient range.

Carrier Board Compatible

Every signal routes through an 80 position Hirose DF17 connector, so the module drops into any CubePilot carrier board.

Open Source Firmware

Runs the ArduPilot stack with full Mission Planner support for configuration, tuning and flight log review.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

Capability name

Short description of this capability.

CubePilot The Cube Orange+ Autopilot Flight Controller Module

Model: HX4-06214

Autopilot module only. No carrier board, cables or power module are included. A CubePilot carrier board is required for operation. The manufacturer does not publish a packing list for this item, so confirm contents against the packing slip on receipt.

CubePilot The Cube Orange+ Autopilot Flight Controller Module

Model: HX4-06214

Module Footprint
Mounting Hole Pattern
Carrier Board Keep-Out Outline
Interface Connector

Values shown are from the manufacturer's reference. Overall module height and weight are not published by the manufacturer.

CubePilot The Cube Orange+ Autopilot Flight Controller Module

Model: HX4-06214

Microcontroller
STM32H757
Flash Memory
2 MB
RAM
1 MB
FMU Inertial Sensor
ICM-20649 30G integrated accelerometer and gyroscope
IMU Board Version
Version 3
IMU Board Sensors
ICM45686 / ICM20649, ICM20948 / ICM42688 / ICM45686_EXT2, ICM42688 / ICM45686
Barometer
MS5611
Accelerometers
Three
Gyroscopes
Three
Magnetometers
One
Barometers
Two
Redundancy
Triple redundancy
Isolation System
Yes
IMU Temperature Regulation
Yes, onboard heating resistors
Sensor Bus
SPI
Storage Interface
microSD via SDIO
Remote Signal Support
PPM / SBUS / DSM
I/O PWM Voltage
3.3 V / 5 V software selectable
PWM Servo Outputs
14 total, eight from I/O and six from FMU
Connecting Interfaces
Two I2C, two CAN, four UART, one console, one USB extender
Interface Connector
80 position Hirose DF17, 4 mm stacking height, 0.5 mm pitch
Mounting
30 x 30 mm M1.6 hole pattern, 35 x 35 mm footprint
Power Input Voltage
4.0 V to 5.5 V compliant, 3.8 V to 5.7 V absolute maximum
Maximum Input Current
350 mA at 5 V input
Ideal Operating Temperature
-10 °C to 55 °C
Maximum Operating Temperature in Emergencies
100 °C
Minimum Storage Temperature Tested
-70 °C
Waterproof Performance
Not waterproof, external protection required
Supported Firmware
ArduPilot
Manufacturing Origin
Taiwan
Product Lifecycle
Available
