DFRobot Terminal Block Board for Raspberry Pi Pico

• DFRobot Terminal Block Board
• Designed specifically for Raspberry Pi Pico
• Features terminal blocks for stable connections
• Includes 27 GPIOs, 5 GNDs, and 4 voltage ports
• Equipped with 35 blue LED indicators for status
• Compact size measuring 2.40 x 3.68 inch

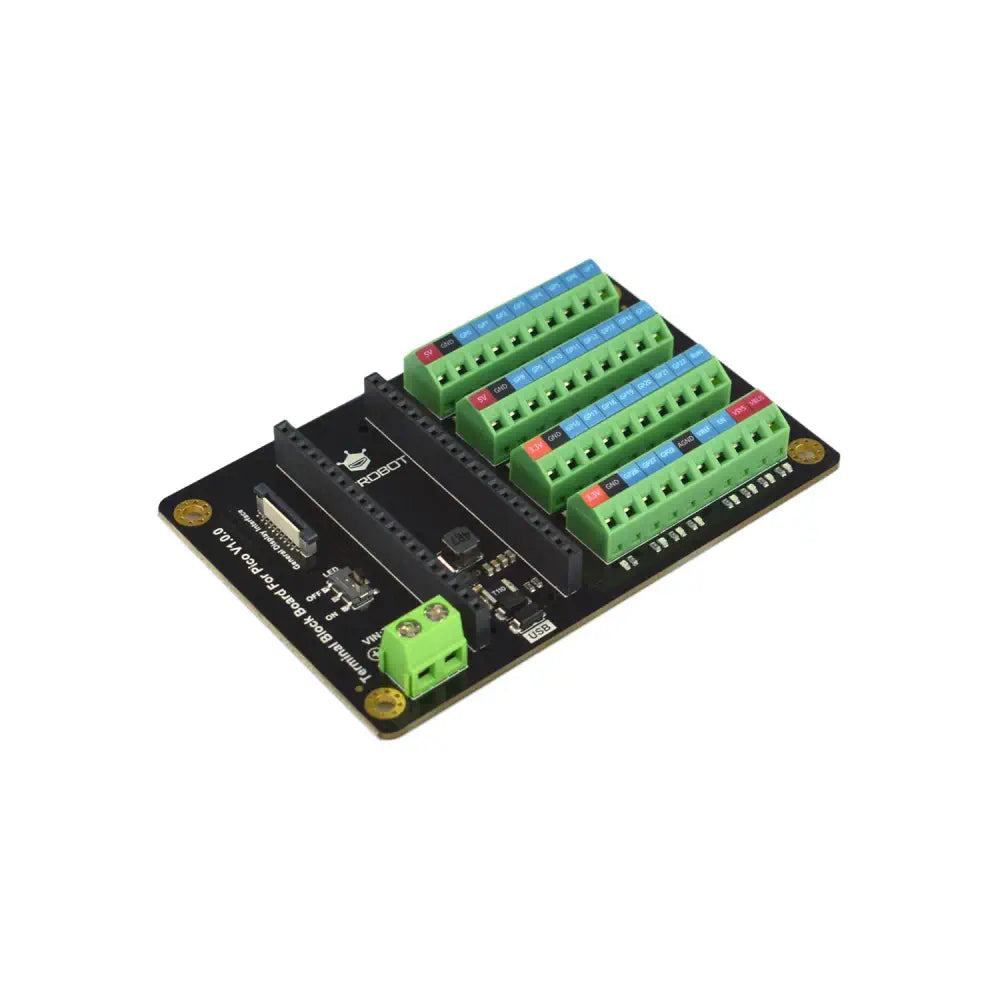

The DFRobot Terminal Block Board for Raspberry Pi Pico is an expansion board specifically designed for those who prefer to use terminal blocks for wiring their projects. This board facilitates the breakout of all pins of the Pico into terminal blocks, offering additional GDI, 5V output, and a power input range of 7-24V. Each port is distinctly marked with clear silkscreens for easy identification.

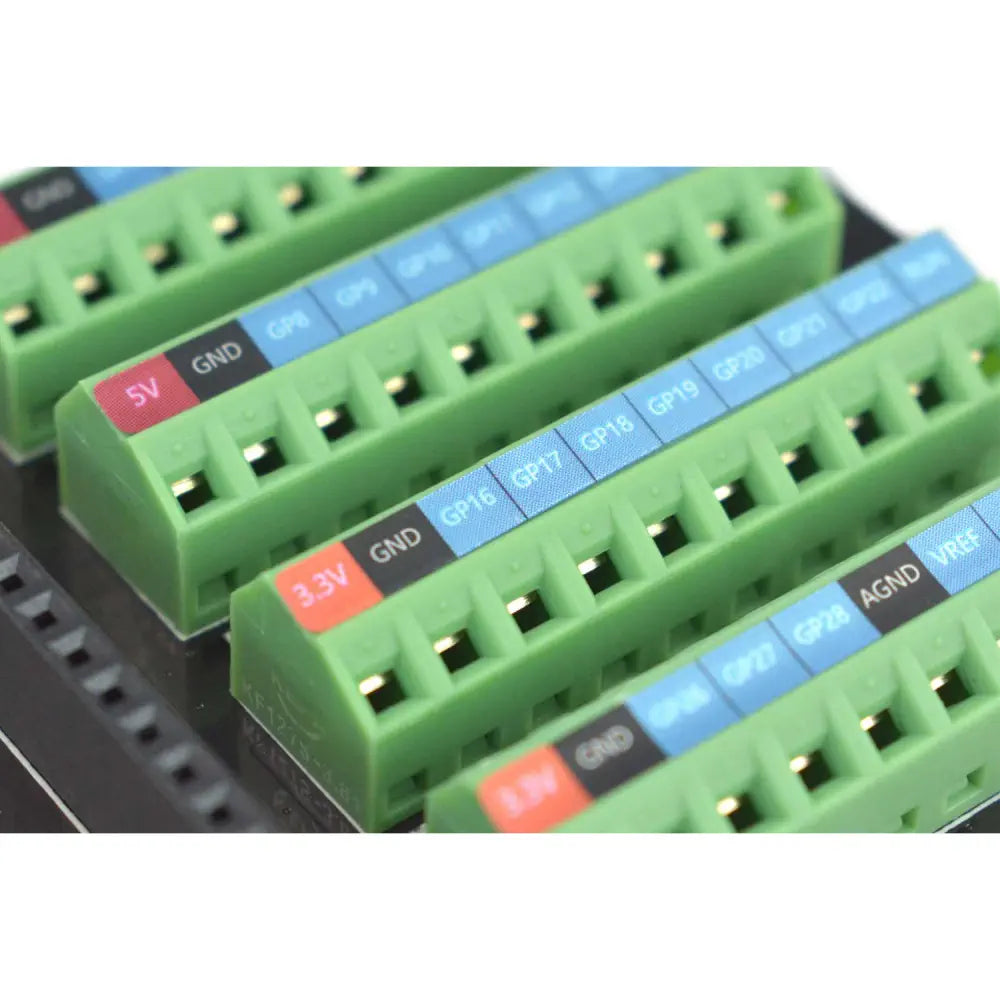

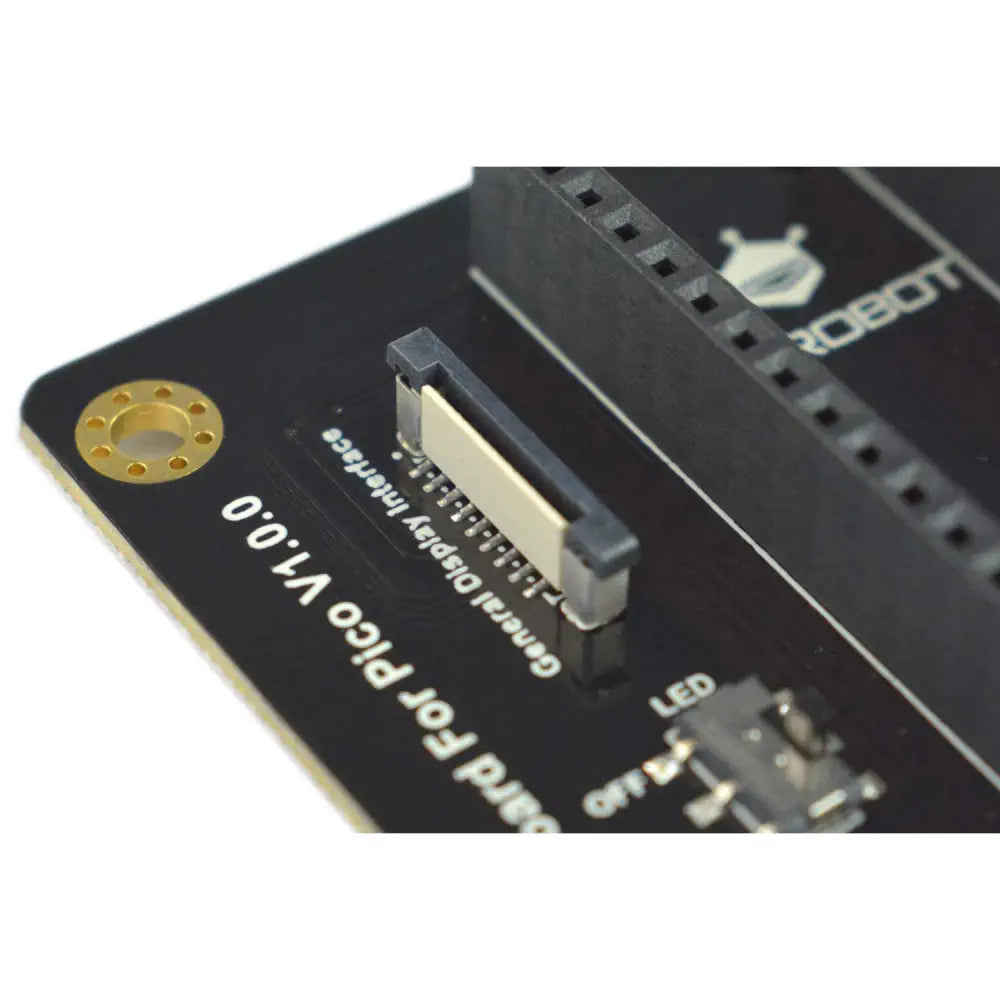

The board is equipped with terminal blocks that ensure stable and reliable connections. It also features an external voltage input range of 7-24V, clear color silkscreens, and a GDI for display connection. Furthermore, it includes a terminal block status indicator and a switch to control the status indicator.

The board's specifications encompass an external voltage input range of 7-24V, a GDI screen interface, 27 GPIOs, 5 GNDs, 2 ports each for 5V and 3.3V, and 35 port LED indicators. The LED indicators are blue and the default ON port indicators include 3.3V, 5V, VSYS, VBUS, and VREF. The board measures 61 x 93.5 mm / 2.40 x 3.68 inch without packaging.

Please note that all terminal blocks, with the exception of GND, are equipped with LED indicators for status indication. These can be deactivated using the onboard switch when not in use.
