BlueRoboticsSKU: RB-Blu-200
Manufacturer #: ETHSWITCH-R1-RP
Price  :
£168.00

Tax included Shipping calculated at checkout

Stock  :

Re-stocking soon See due date

Notify me when this product is in stock

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Ethernet Switch
  • Designed to be a perfect complement for the Fathom-X board

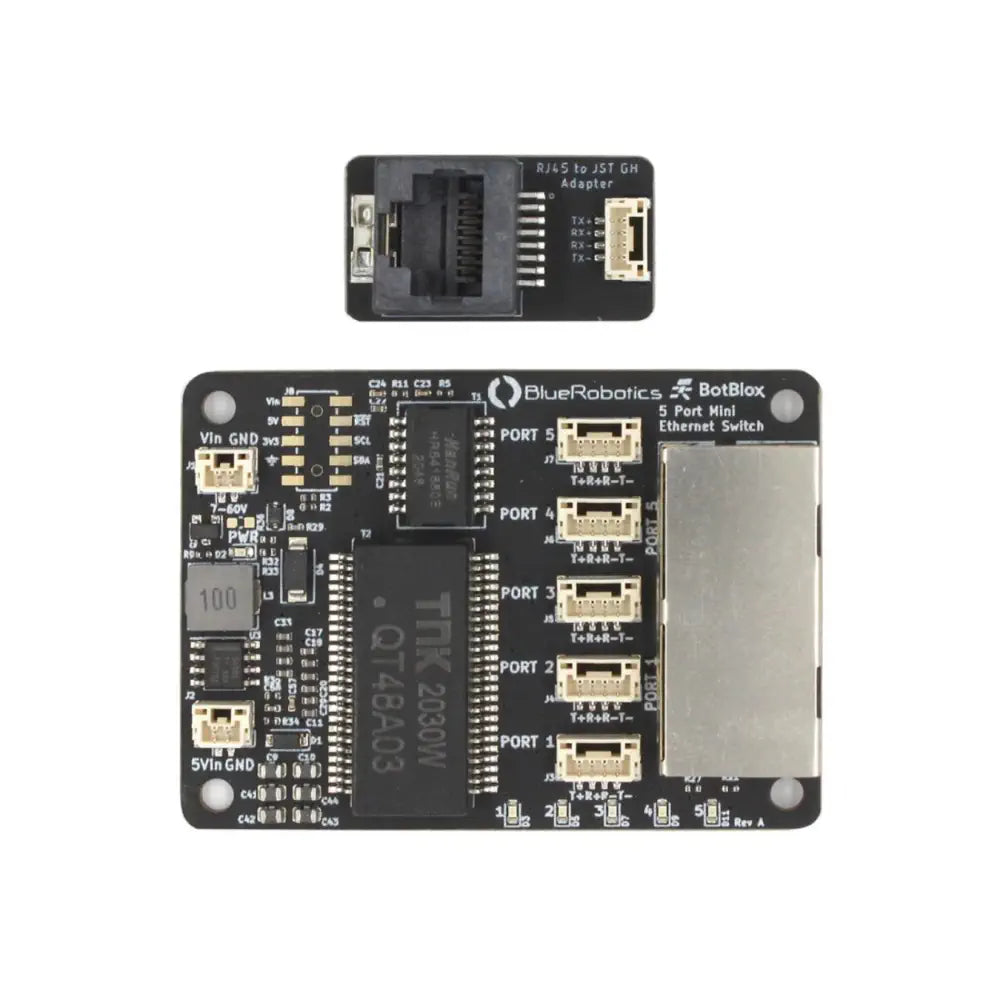

  • Comes with an RJ45 to JST-GH adapter board
  • Provides three additional Ethernet ports
  • Supply Voltage: 7 - 60 volts
  • Ethernet Speed: 100 Mbps

The Ethernet Switch is a 5-port 10/100 Ethernet switch designed to integrate perfectly with the Fathom-X Tether Interface Board, providing three additional Ethernet ports for accessories on the BlueROV2.

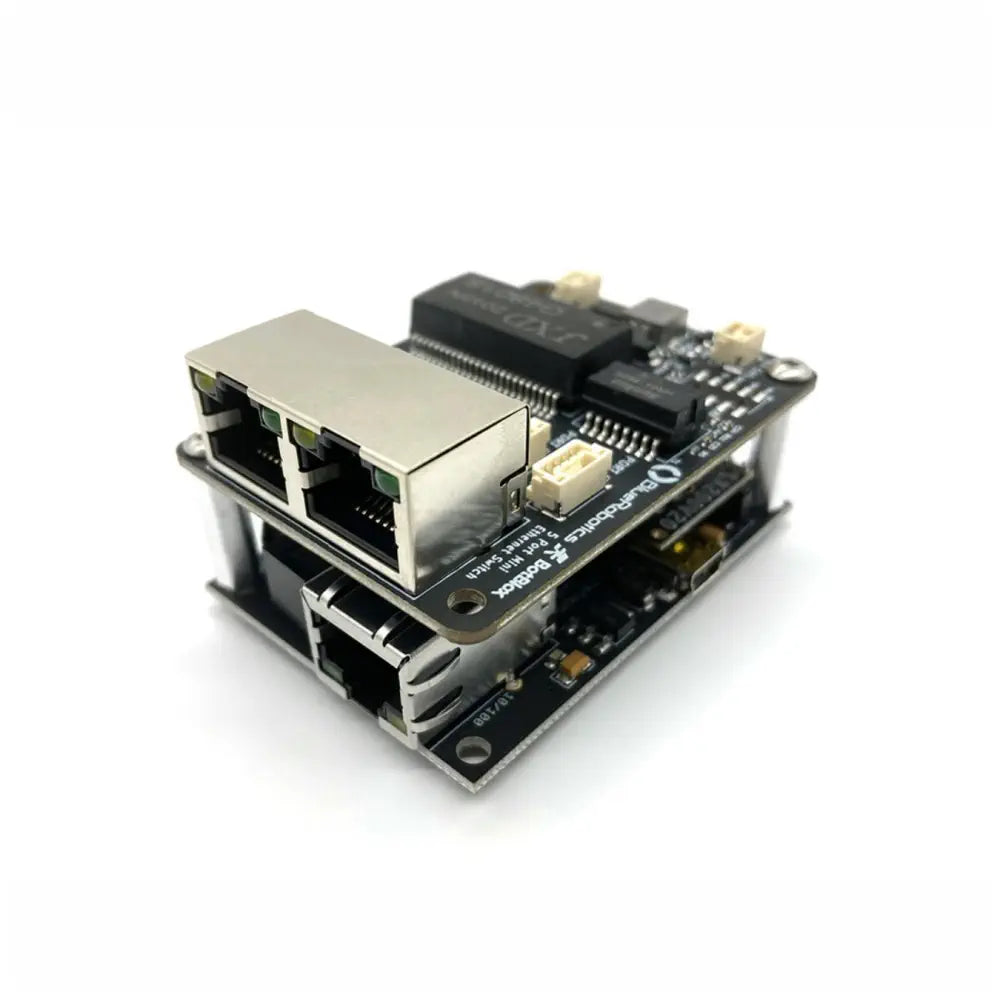

This switch was designed in collaboration with BotBlox and leverages their extensive expertise on Ethernet switches for robotics applications. The Ethernet Switch is designed to be a perfect complement for the Fathom-X board. It has the same dimensions and mounting holes so that it can stack on top.

The switch comes with an RJ45 to JST-GH adapter board to make it easy to connect your Ethernet device during testing, but it is recommended to solder splicing one of the included JST-GH cables to your device for long term integration on an ROV since a standard RJ45 connector does not fit through a cable penetrator hole.

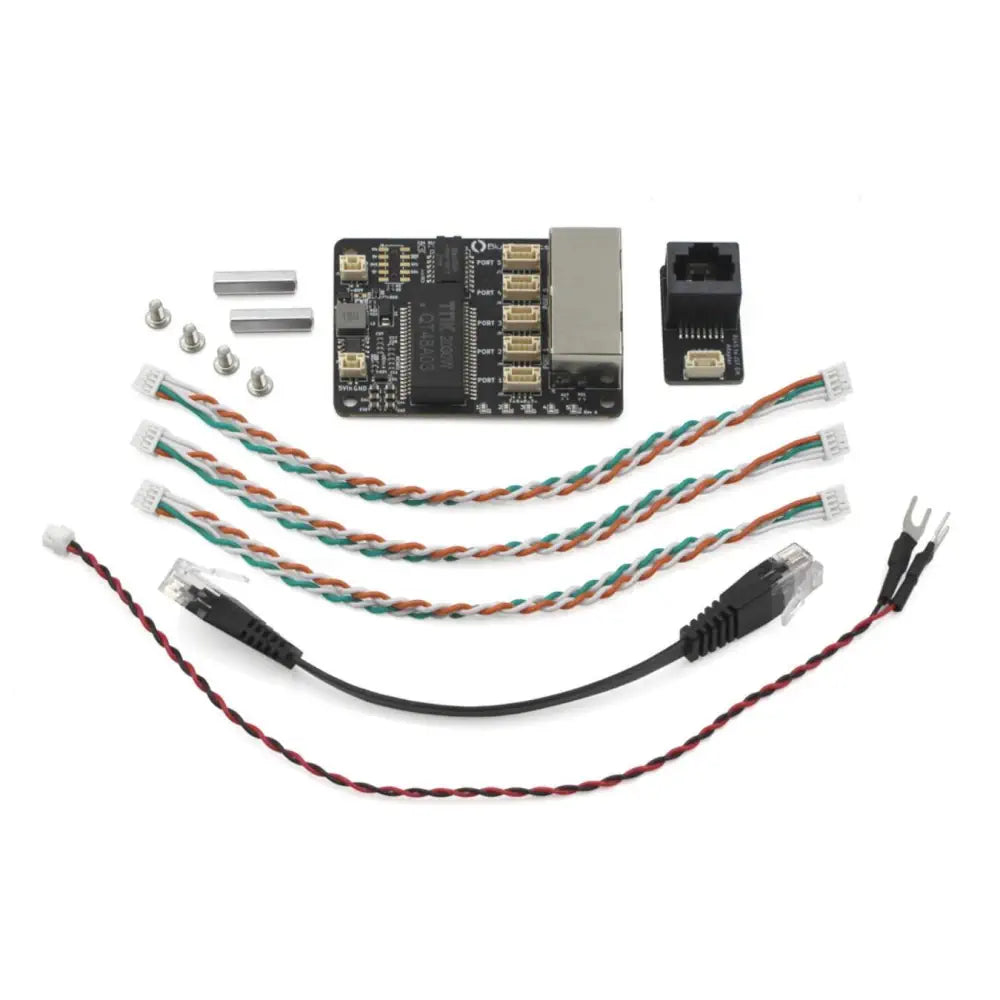

  • 1x Ethernet Switch Board
  • 1x RJ45 to JST-GH Adapter Board
  • 3x 200mm JST-GH to JST-GH twisted pair cable
  • 1x 150mm Ethernet cable
  • 1x Power cable with spade connectors
  • 2x 18mm mounting standoffs
  • 4x M3x5 mounting screws

Size

  • Dimensions: 64 x 46 mm
  • Screw Hole Spacing: 57 x 40 mm
  • Screw Hole Diameter: 3.3 mm
  • Cable Length (included accessory cable): 200 mm

Electrical

  • Supply Voltage (wide range input): 7 - 60 volts (reverse polarity protected)
  • Supply Voltage (5v input): 5 volts
  • Idle Power Consumption: 300 mW
  • Max Power Consumption: 700 mW
  • Power over Ethernet (PoE): Not supported

Performance

  • Ethernet Speed: 100 Mbps
  • Ports: 5-ports

Connectors

  • JST GH Connector Type: BM04B-GHS-TBT(LF)(SN)(N) (on the PCB)
  • JST GH Plug Housing and Crimp Pins (not included): GHR-04V-S (housing) | MINI-SSHL-002T-P0.2 (pin)
  • Data Connector Pinout: TX+ | RX+ | RX- | TX-
  • Power Connector Type: BM02B-GHS-TBT(LF)(SN)(N)
  • Power Connector Pinout: V+ | Ground

Physical

  • Operating Temperature: -20 to +85°C
  • Storage Temperature: -40 to +85°C
