Description

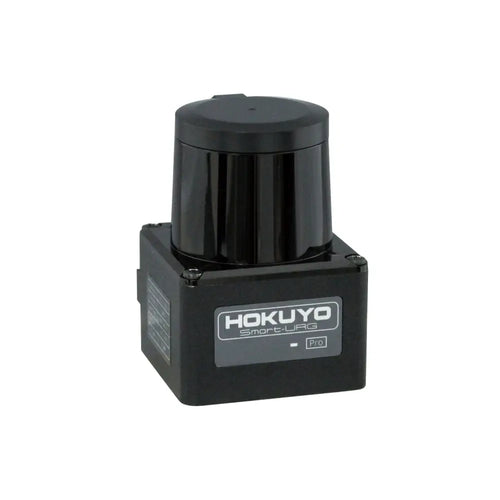

- Hokuyo UST-15LX Scanning Laser Rangefinder
- Measures up to 15 meters accurately
- Offers a wide 270-degree field of view
- Ensures rapid 40Hz scan speed
- Features IP67 dust and water protection
- Weighs approximately 130 grams
The Hokuyo UST-15LX Scanning Laser Rangefinder is a sophisticated and lightweight LiDAR scanner designed for precise measurement applications. It offers a measurement range of up to 15 meters and is equipped with a high angular resolution, providing detailed scanning capabilities. The device operates with a scan speed of 40Hz, ensuring rapid data acquisition and processing. Its expansive 270-degree field of view allows for comprehensive area coverage, making it suitable for various industrial and research applications. Data output is facilitated through an Ethernet connection, ensuring efficient data transfer and integration with other systems.
This 2D laser rangefinder is engineered to deliver reliable performance with multi-echo functionality, enhancing its ability to detect objects in complex environments. The device operates with a low supply current, making it energy-efficient, and features a robust design with an IP67 rating, offering protection against dust and water ingress. The UST-15LX is capable of maintaining accuracy within ±40mm, even under varying environmental conditions, and functions effectively within a temperature range of -10ºC to 50ºC.
The rangefinder utilizes a laser semiconductor light source, classified as Laser Class 1, ensuring safety during operation. It is powered by a supply voltage of 12VDC or 24VDC, with an operational range accommodating voltage fluctuations. The device's compact design, weighing approximately 130 grams, facilitates easy installation and integration into existing systems.
Note: Ensure proper handling to avoid exposure to laser emissions, and maintain connections to prevent ingress of dust and water.
- 1x Hokuyo UST-15LX Scanning Laser Rangefinder
- 50 x 50 x 70 mm
- Range: 15 meters
- Field of View: 270 degrees
- Resolution: 0.25 degrees / 0.125 degrees
- Scan Speed: 40 Hz (25 ms)
- Multi Echo: Yes
- Type: 2D
- Supply Current: 150 mA or less (450 mA necessary during startup)
- Output: Synchronous output, photo coupler open collector output 30 VDC 50 mA max
- Input: IP reset input, photo-coupler input (current 4 mA at ON)
- Accuracy: ±40 mm
- Operating Temperature Range: -10ºC to 50ºC, less than 85% RH (without dew, frost)
- Detection Range: 0.06 meters to 15 meters (White Kent Sheet), max 30 meters
- Detection Range at 10% Reflectivity: 0.06 meters to 6 meters (diffuse reflectance 10%)
- Repeated Accuracy: Standard deviation σ < 20 mm
- IP Rating: IP67 (excludes connections on standard UST-15LX model)
- Connections: Power source, I/O cable: 1.0-meter cable; Ethernet: 0.3-meter cable
- Light Source: Laser semiconductor (905 nm); Laser class 1 (IEC60825-1:2007)
- Supply Voltage: 12 VDC / 24 VDC (operation range 10 to 30 V ripple within 10%)
- Weight: 130 g
