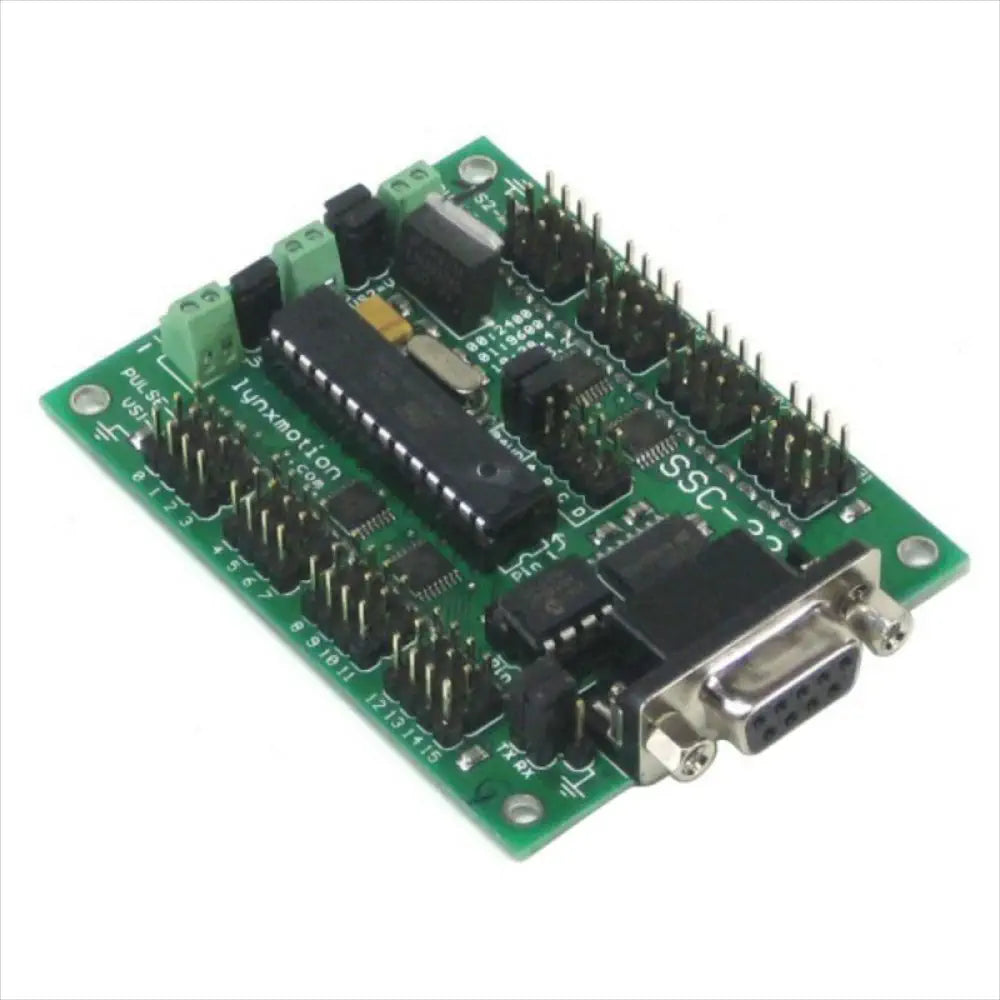

Lynxmotion SSC-32 Servo Controller

LynxmotionSKU: RB-Lyn-100
Manufacturer #: SSC-32

Price  :
Sale price £37.75

Tax included Shipping calculated at checkout

Discontinued

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Lynxmotion SSC-32 Servo Controller
  • Controls up to 32 servo motors
  • Comes preassembled
  • Serial interface (TTL or RS-232)
  • Bidirectional communication with Query commands

This product is discontinued and replaced by Lynxmotion SSC-32U USB Servo Controller an improved USB version.

The Lynxmotion SSC-32 Servo Controller is a small preassembled servo controller with some big features. It has high resolution (1uS) for accurate positioning, and extremely smooth moves. The range is 0.50mS to 2.50mS for a range of about 180°. The motion control can be immediate response, speed controlled, timed motion, or a combination. A unique "Group Move" allows any combination of servos to begin and end motion at the same time, even if the servos have to move different distances. This is a very powerful feature for creating complex walking gaits for multi servo walking robots. The servo's position or movement can be Queried to provide feedback to the host computer.

There is even a 12 servo Hexapod sequencer built in. This allows complete control of all aspects of the alternating tripod gait simply by transferring a few values from the host controller. Any output can be used as a TTL level output. There are 4 digital inputs that are static or latched, so you don't have to worry about missing a short event. They can also be used as analog inputs. There are three terminal blocks for powering options. The DB9 input has true RS-232 levels for use with a PC.

Lynxmotion SSC-32 Servo Controller

Features:
32 channels of 1uS resolution servo control
Bidirectional communication with Query commands
Synchronized, or "Group" moves
12 Servo Hexapod Gait Sequencer built in
MiniSSC-II emulation, like having 4 of them

SSC-32 Servo Sequencer Utility (created using FlowBotics Studio)

The Lynxmotion SSC-32 Servo Controller board can be easily controlled with the new SSC-32 Servo Sequencer Utility. It is available as a free downloadable utility which makes it easy to experiment with robotics and animatronics.  It can be found in the Useful Links section.

This utility is an example of the type of program which can be built using Lynxmotion FlowBotics Studio Graphical Programming Software (Download) , which includes this program as an open source demo project. The SSC-32 Servo Sequencer Utility program enables you to easily move servo motors, calibrate their position, store and playback motion sequences, upgrade the SSC-32 firmware and more.

Lynxmotion SSC-32 Servo Controller


These specifications pertain to firmware version 2.01XE:
• Microcontroller: Atmel ATMEGA168-20PU
• EEPROM: 24LC32P (Required for 2.01GP)
• Speed: 14.75 MHz
• Internal Sequencer: 12 Servo Hexapod (Alternating Tripod)
• Serial input: True RS-232 or TTL, 2400, 9600, 38.4k, 115.2k, N81
• Outputs: 32 (Servo or TTL)
• Inputs: 4 (Static or Latching, Analog or Digital)
• Current requirements: 31mA
• PC interface: DB9F
• Microcontroller interface: Header posts
• Servo control: Up to 32 servos plug in directly
• Servo type supported: Futaba or Hitec
• Servo travel range: 180°
• Servo resolution: 1uS, .09°
• Servo speed resolution: 1uS / Second
• Servo motion control: Immediate, Timed, Speed or Synchronized.
• PC board size: 3.0" x 2.3"
• VS peak current: max 15 amps per side
• VS steady current = max 3-5 amps per side recommended.

Customer Reviews

Based on 4 reviews
50%
(2)
50%
(2)
0%
(0)
0%
(0)
0%
(0)
S
Sasan
Redo the board so that Higher Current (lower gauge) wires can be used

This is a great board. We use extensivley through the years. However, not much consideration has been paid to connecting supply since the board can easily carry 10 amps or more. Redesign with larger terminals for supplying Power. Also 12 V protection in case wrong battery connected instead of 6V.

E
Eric
Excellent servo controller

Amazing servo controller, easily configurable using jumpers, power system makes sense, can support up to two batteries for VS (Voltage servo). Separate power supply for logic. Great product.

J
Joseph G.
Exceeded my expectations

I continue to make progress towards making my vision for my robotic camera dolly a reality thanks to this piece of hardware.

R
Rob
Nice board, but......

A nice little board, does the job, the only thing I don't like about it is the linear regulator on it :( but will change that soon :) but does its job and lots of support out there for you.
