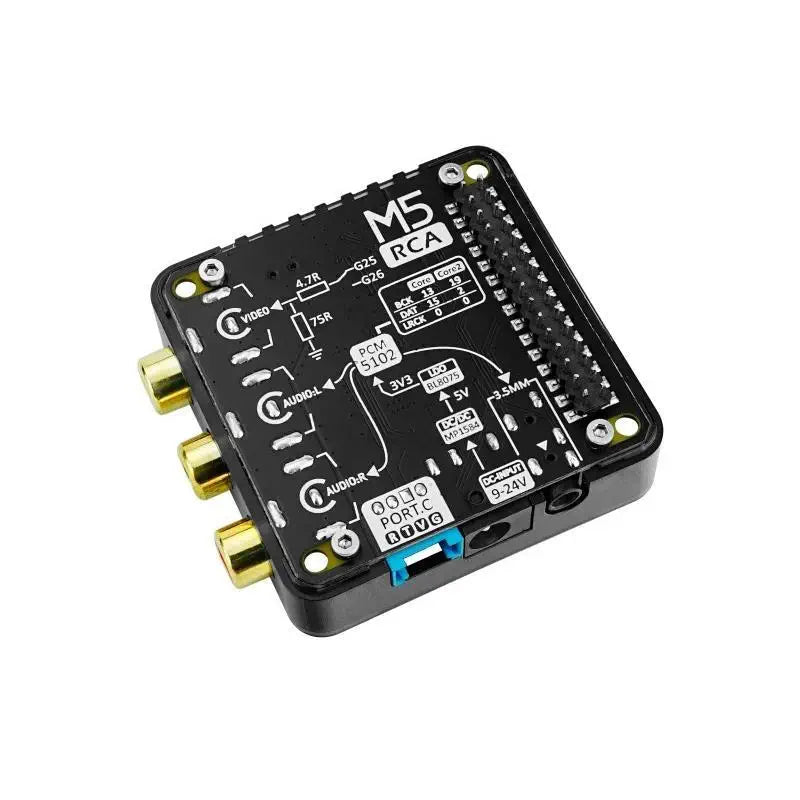

The M5Stack RCA Audio/Video Composite Module 13.2 is a composite signal expansion module for audio and video, using the common S-terminal RCA connector, divided into two (left and right channels) audio and one video output.

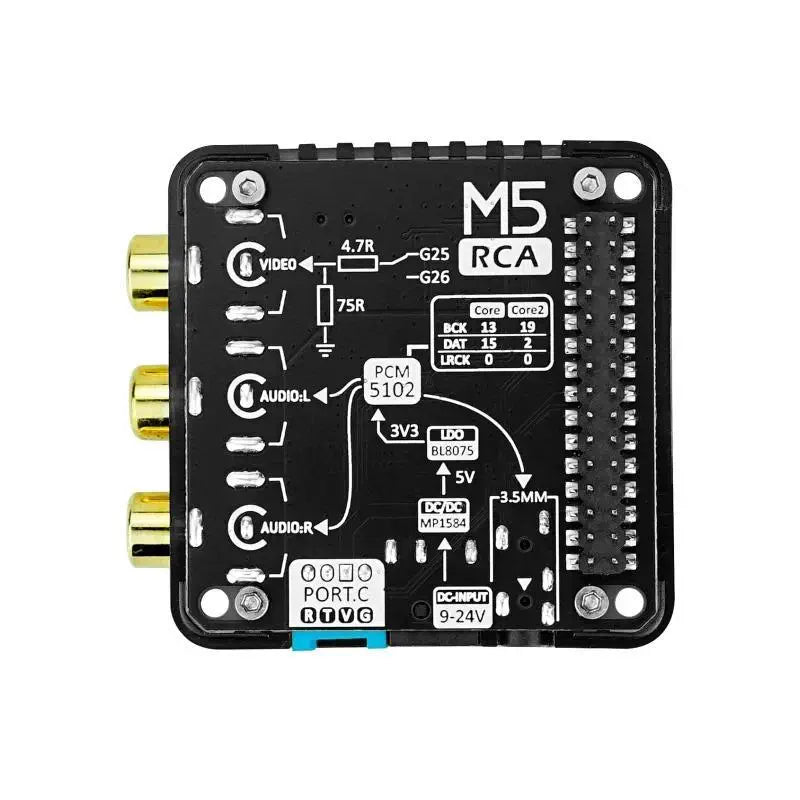

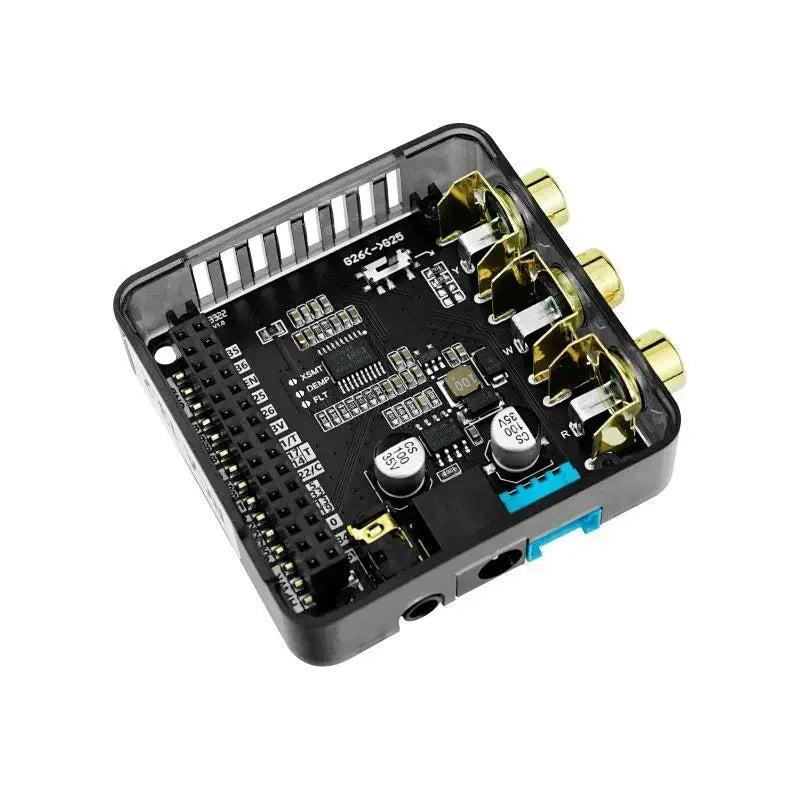

The audio part adopts the I2S power amplifier chip PCM5102APWR scheme, which can realize 32-bit stereo audio signal output, In terms of video, the DAC analog video signal function of the main control ESP32 is applied, which can generate analog video signals with a resolution of no more than 864 x 576 (PAL, PAL_M). The module contains a DC socket and a 9-24V to 5V DCDC circuit to supply power to the whole machine. This product is suitable for audio and video equipment that drives the S-terminal interface.

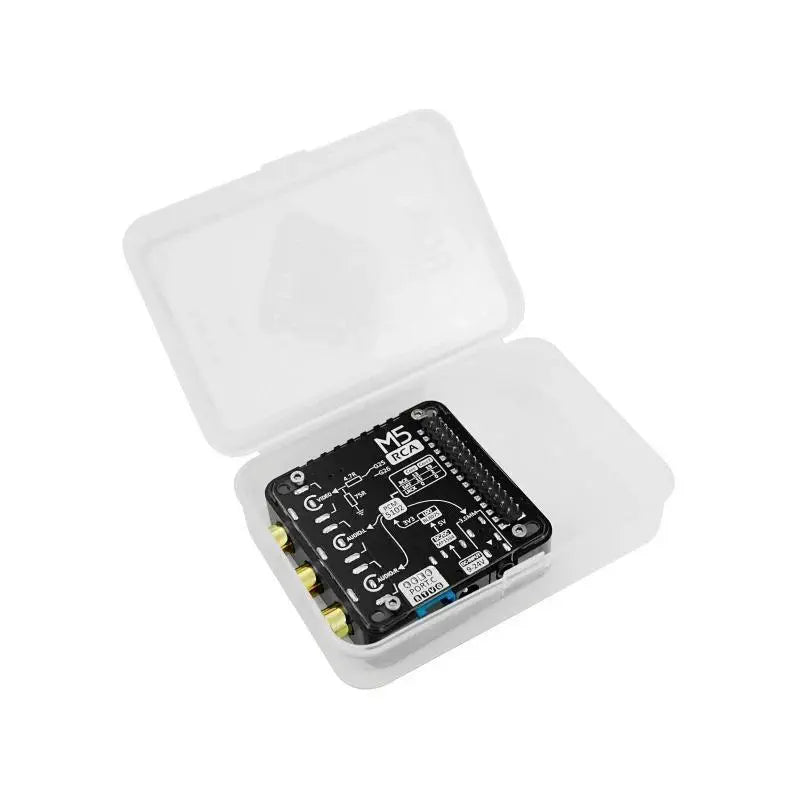

1x M5Stack RCA Audio/Video Composite Module 13.2
Size
54 x 54 x 19.7 mm
Audio stereo DAC chip: Audio stereo DAC chip

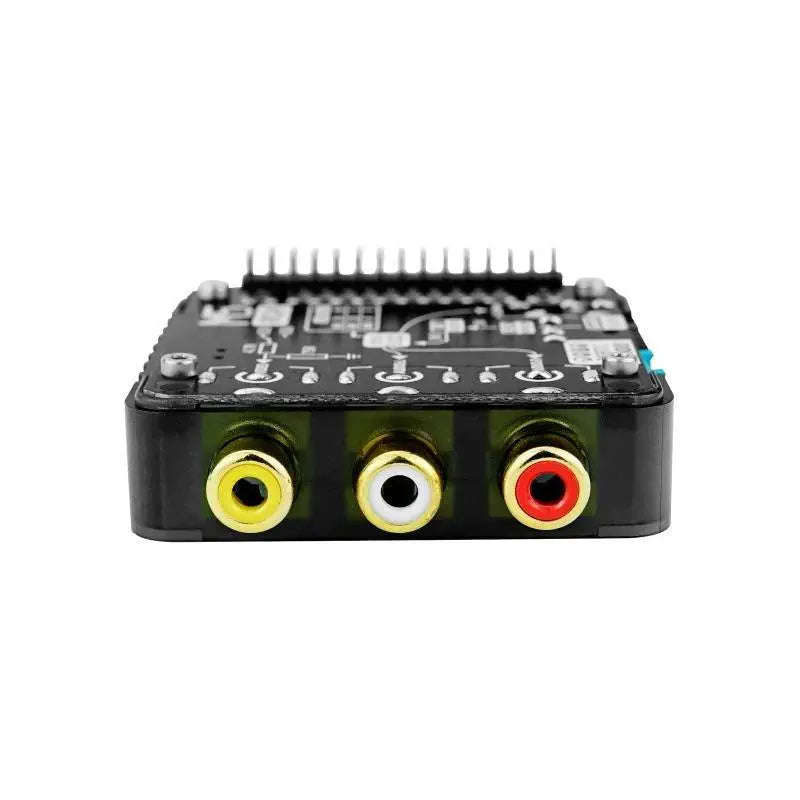

Interface: RCA female seat

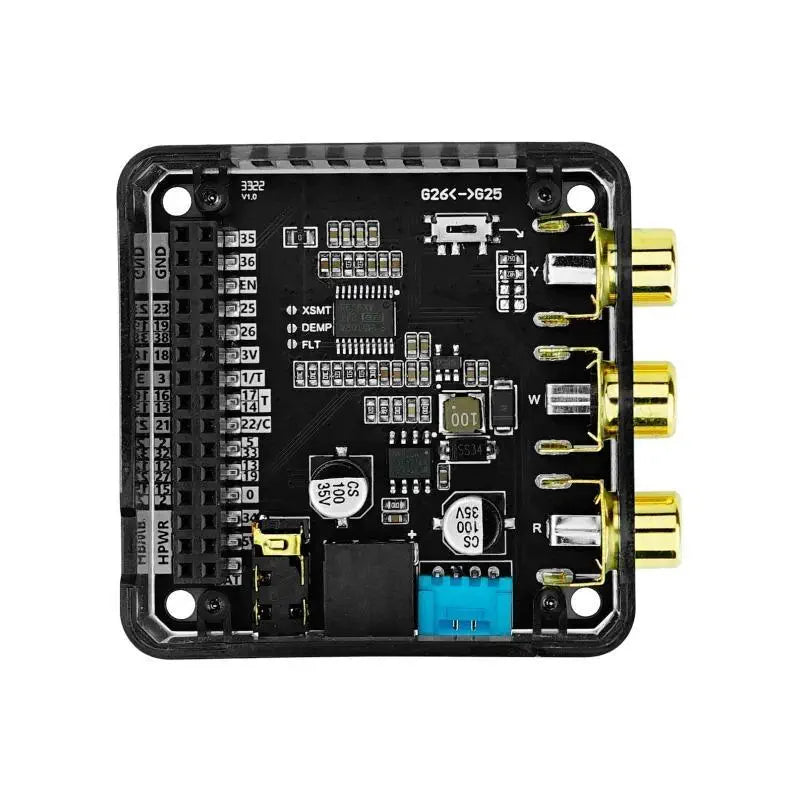

Channel: 1 CVBS video output interface (GPIO25&GPIO26 switch between two choices)

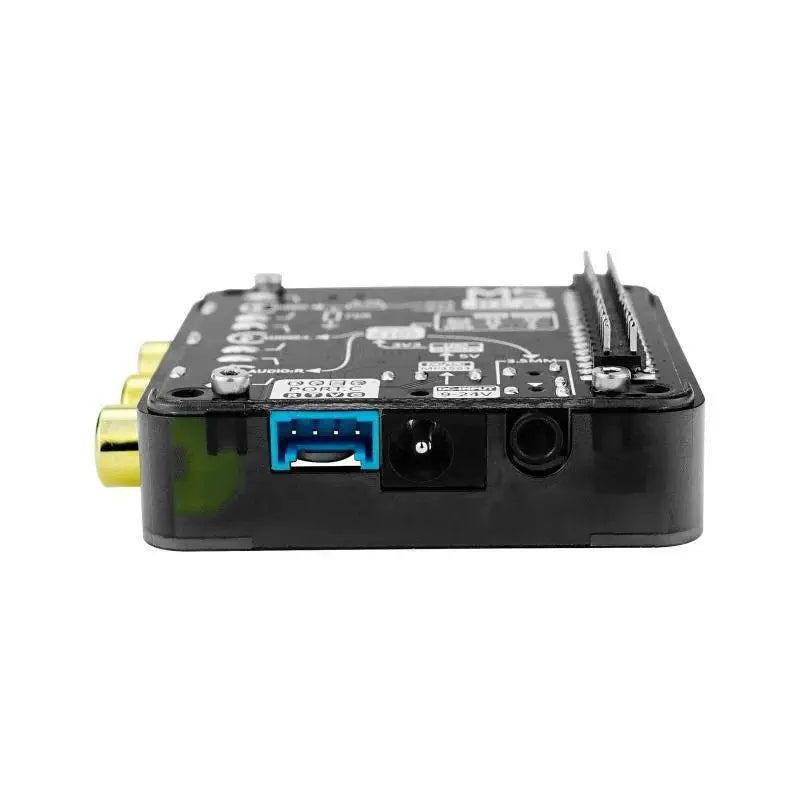

Output Signal: Audio and video (3.5mm headphone jack output optional)
