Description
- MC33886 Raspberry Pi Motor Driver Board
- Features a Standard Raspberry Pi 40PIN GPIO extension header
- Supports Raspberry Pi series boards
- Freescale H-bridge driver MC33886, controls DC motors to turn in both directions
- Onboard 5V regulator, provides power to Raspberry Pi
- Onboard IR receiver, used for remote control robot

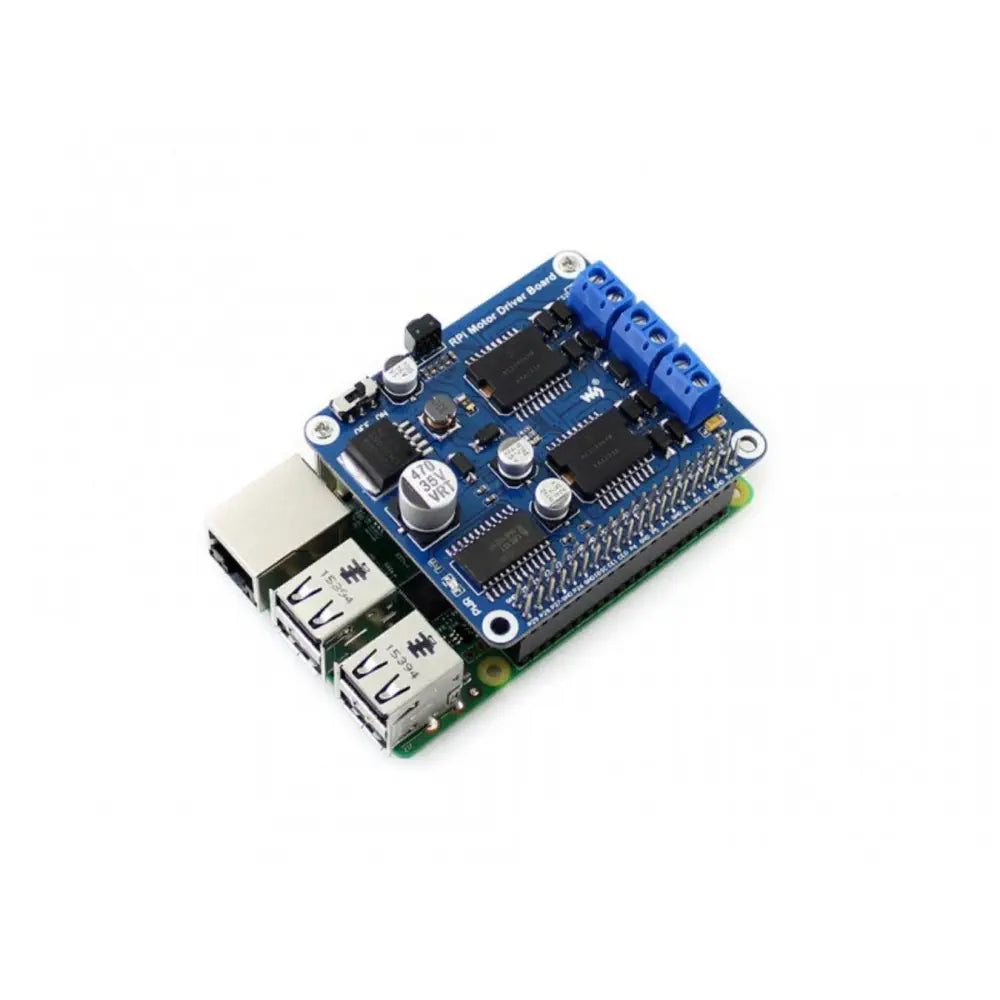

The MC33886 Raspberry Pi Motor Driver Board for Raspberry Pi gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.
Features:
- Multi protection circuit, excellent stability
- 2A self-recovery fuse, keep your Pi safe
- Driver chip features Short-Circuit Shutdown for Large Output Current, Undervoltage Disable Function
- Reversed polarity protection for motor output
- Anti-reverse diode for power supply
- 1x RPi Motor Driver Board
- 2x RPi Screw Pack

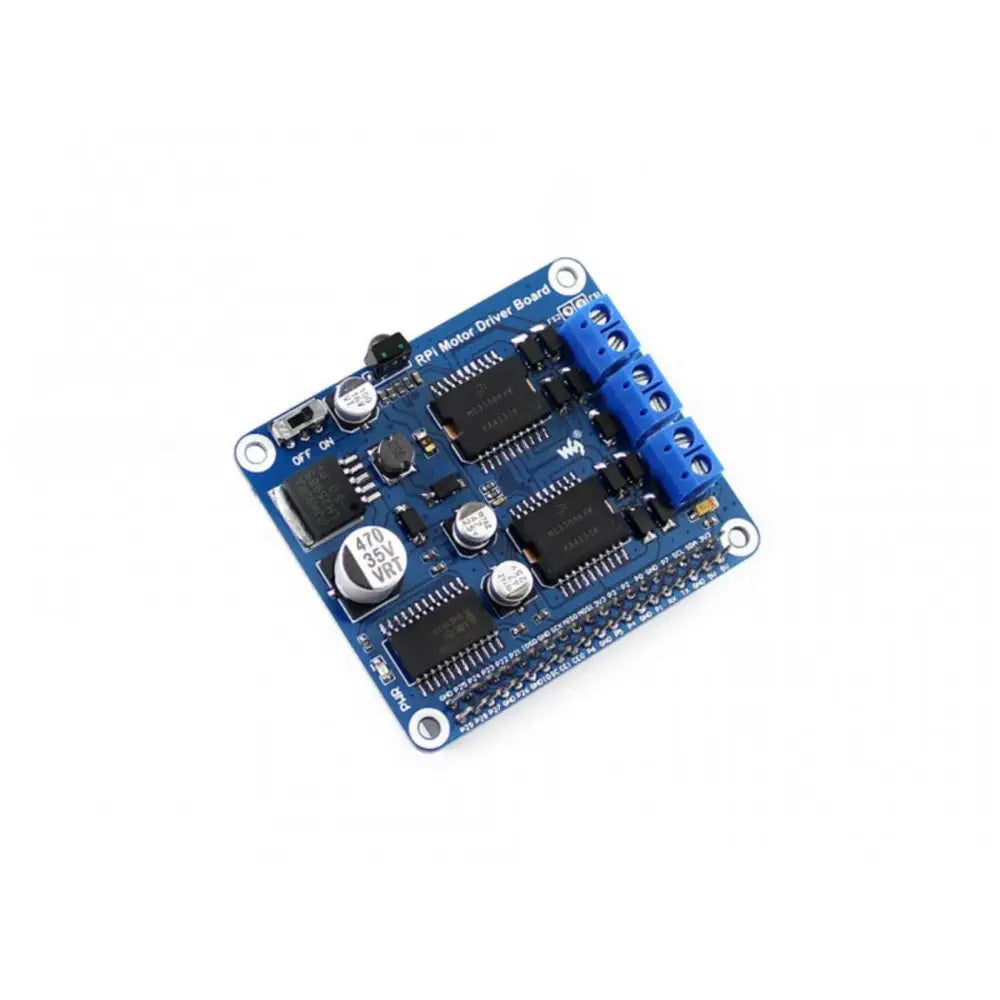

- 1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
- 2. Motor screw terminal: for connecting motors
- 3. External power input
- 4. 74LVC4245AD: voltage level conversion chip, buffer device
- 5. MC33886: motor driver chip
- 6. LM2596-5.0: 5V regulator
- 7. Power indicator
- 8. Raspberry Pi power selection
- OFF: Raspberry Pi powers the Motor Driver Board
- ON: Motor Driver Board powers the Raspberry Pi
- 9. 2A self-recovery fuse
- 10. IR receiver
- 11. Schottky diodes: protects the motor driver
- 12. Power supply anti-reverse diode
