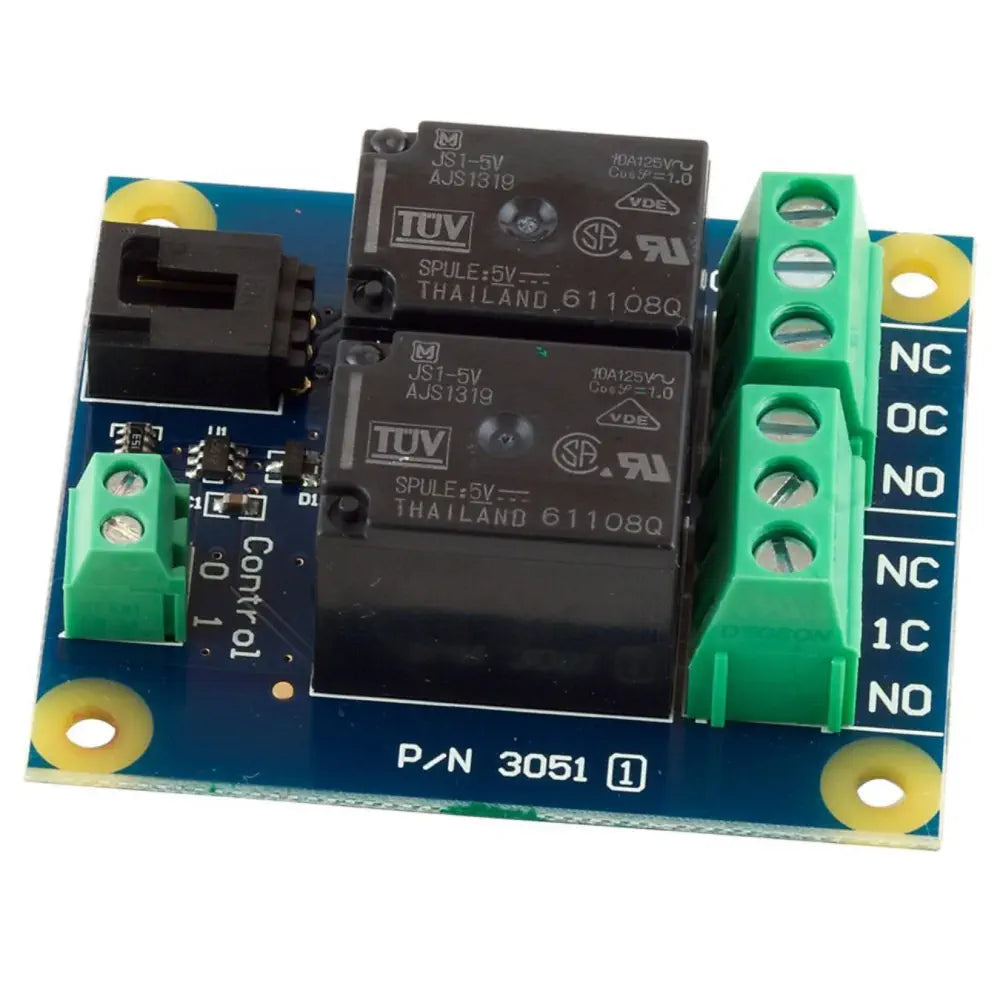

Phidgets Dual Relay Board

• Board Dimensions: 5.3 x 4.5 cm
• Mounting Holes: 4.6 x 3.8 cm

PDF File

• Mechanical Drawings

Board

• Current Consumption Min: 14 mA
• Current Consumption Max: 180 mA
• Supply Voltage Min: 3.3 V DC
• Supply Voltage Max: 12 V DC

Electrical Properties

• Dielectric Strength: 1.5 kV AC
• Contact Resistance Max: 100 mO
• Load Voltage Max (DC): 100 V DC
• Load Voltage Max (AC): 240 V AC
• Load Current Min: 100 mA
• Load Current Max (DC): 5 A
• Load Current Max (AC): 10 A
• Turn-on Time Max: 10 ms
• Turn-off Time Max: 10 ms

Physical Properties

• Switch Type: SPDT
• Switching Speed Max: 20 cpm
• Terminal Block Size (Control): 3.8 mm
• Terminal Block Size (Load): 5 mm
• Operating Temperature Min: 0º C
• Operating Temperature Max: 70º C
