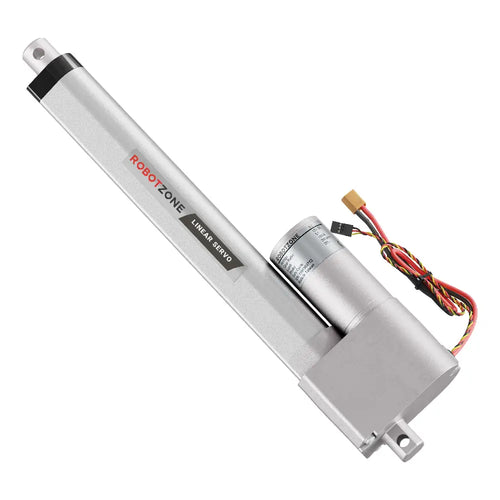

ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 8" Stroke)

ServoCitySKU: RB-Sct-1948
Manufacturer #: 3020-0005-0200

Price  :
Sale price £287.99

Tax included Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 8" Stroke)
  • Integrates seamlessly with various controllers
  • Ensures precise control via closed-loop feedback
  • Constructed with metal for enhanced durability
  • Withstands static loads without back-driving
  • Operates efficiently in any orientation

The ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 8" Stroke) is a sophisticated device engineered to respond to PWM signals, offering a seamless integration with various servo controllers without the need for additional tuning or wiring. This linear servo is equipped with an advanced internal circuit board capable of accepting PWM signals from a wide range of controllers, including wired and wireless systems, as well as microcontrollers like Arduino. Its closed-loop feedback system ensures precise control over the extension tube's position by continuously monitoring the current position via an internal potentiometer and adjusting the motor's power accordingly. The device is powered through a male XT30 connector requiring a 12V input with a minimum of 5A, and it conveniently supplies 5V to the servo controller, allowing both components to operate from a single power source. Constructed with metal for enhanced durability, the linear servo can replace pneumatic and hydraulic systems, providing efficient linear thrust through its ACME screw mechanism. This design enables the servo to withstand significant static loads without back-driving, even when power is removed. The servo can function in any orientation, delivering equal force in both pulling and pushing directions. The mounting clevis near the motor is fixed, while the one on the extension tube can be rotated to accommodate different application requirements. Note: Ensure proper voltage and current specifications are adhered to for safe operation.

Heavy-Duty Linear Servo Position Control 12-24V 33lb Thrust 8Inch Stroke

  • 1x ServoCity Heavy-Duty Linear Servo (Position Control, 12-24V, 33lb Thrust, 1.7"/sec, 8" Stroke)
  • Stroke: 8"
  • Retracted Length: 7.87"
  • Extended Length: 21.57"
  • Pulse amplitude: 3-5V
  • Operating temperature: -20°C to +60°C
  • Deadband width: 8µs
  • Motor type: 3-pole ferrite
  • Feedback style: 10KΩ potentiometer
  • Gear material: Metal gear train, nylon pinion
  • Wire length: Servo lead: 12.0”, power input: 6.0"
  • Wire gauge: Servo lead: 22 AWG, power input: 14 AWG
  • Voltage range (nominal): 12 - 24V
  • Voltage range (maximum): 11 - 30V
  • Speed (no load): 1.70” per second
  • Gearbox style: Straight cut spur
  • Connector type: Servo lead: Male servo connector, power input: XT30 connector [FH-MC]
  • Gear ratio: 5:1
  • Speed (max load): 1.37” per second
  • Dynamic thrust: 33 lbs
  • Static load: 500 lbs
  • Current drain (no-load): 1A
  • Current drain (max load): 4.5A
  • Potentiometer tolerance: ± 5%
  • Feedback density: 1.25KΩ / inch
  • IP rating: IP53
  • Duty cycle: 25% on, 75% off
  • Lead screw type: 3mm pitch, single thread
  • Potentiometer linearity: ± 0.25%
  • PWM signal (fully retracted): 1900µs
  • PWM signal (fully extended): 1100µs
  • Current drain (idle): 25mA
