Description

  • Provides clean 5V/3.3V to your breadboard or project
  • Requires soldering and assembly
  • No assembly manual provided

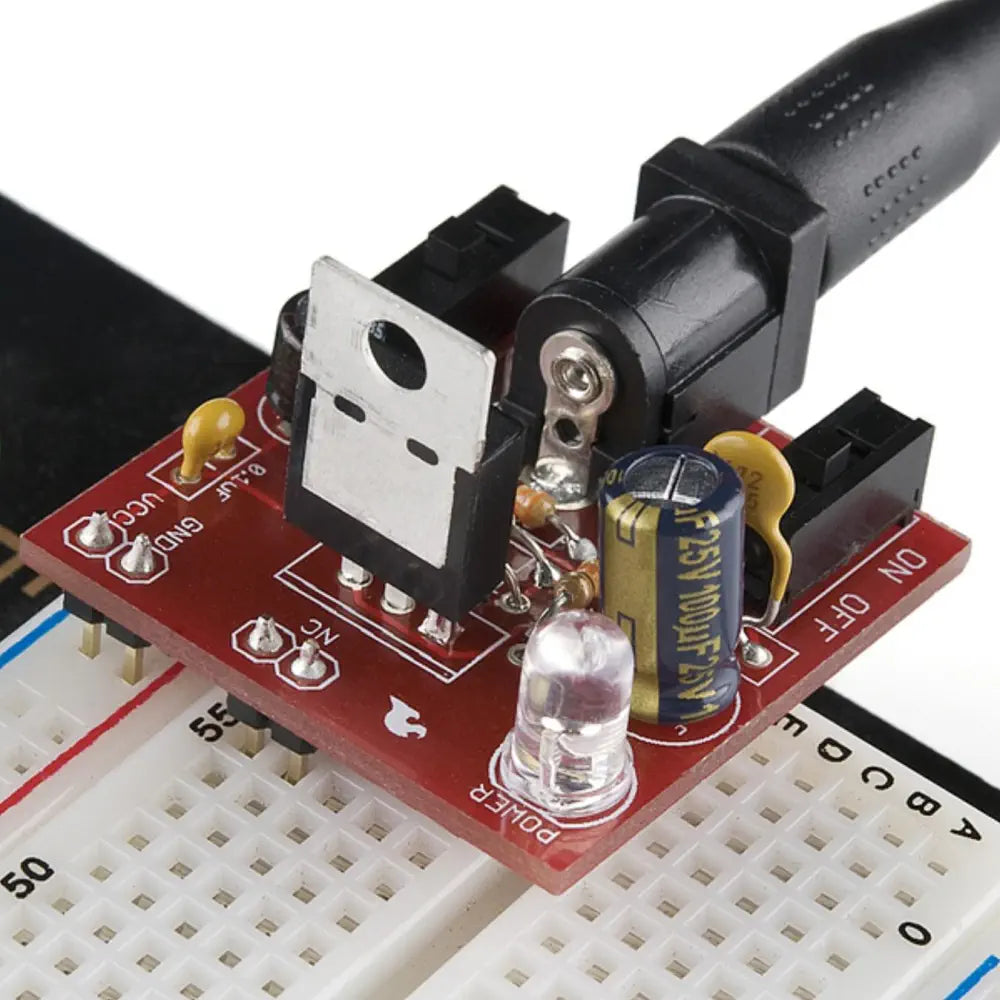

The Breadboard Power Supply Kit is a very simple breadboard power supply kit that takes power from a DC wall wart and outputs a selectable 5V or 3.3V regulated voltage. The .1" headers are mounted on the bottom of the PCB for simple insertion into a breadboard. Pins labeled VCC and GND plug directly into the power lines. The lone pair of pins have no electrical connection but help support the PCB. There are two pins available within the barrel jack footprint. Any stripped +/- DC supply can be connected instead of the barrel connector. Board has both an On/Off switch and a voltage select switch (3.3V/5V).

Breadboard Power Supply Kit 5V/3.3V- Click to Enlarge

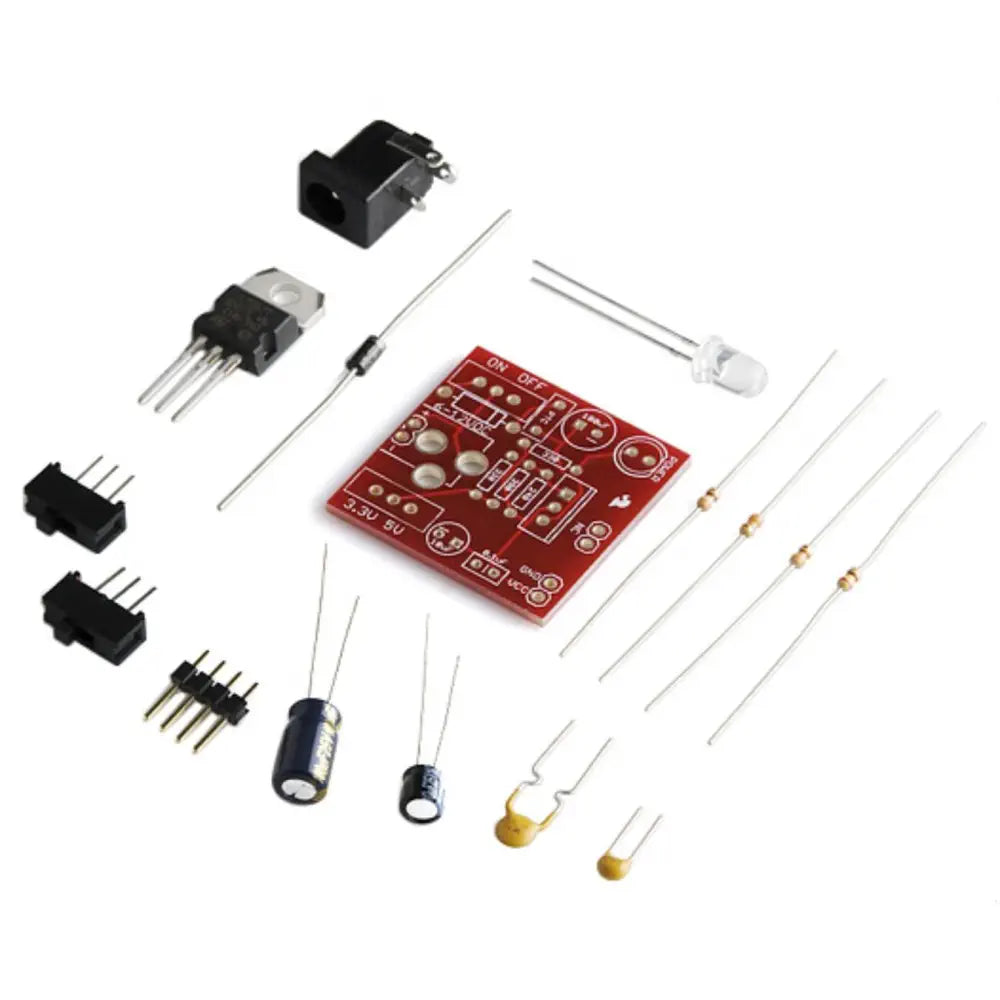

This product comes as a bag of parts kit and is easily assembled if you can follow the silkscreen indicators and have beginning experience with a soldering iron. You will need to read the resistor bands or use a multimeter to determine the resistor sizes. No assembly manual is provided.

  • DC Barrel Connector (2.1mm center positive)
  • TO-220 Voltage Regulator (LM317 1.5A max current)
  • 1N4004 Reverse Protection Diode
  • 100uF 25V Capacitor
  • 10uF 25V Capacitor
  • 0.1uF 50V Capacitor
  • Red Power LED - High Brightness
  • 2pcs SPDT Slide Switch
  • 4pcs 0.1" Header Pins
  • 2pcs 330Ω  Resistor 1/6W
  • 390Ω  Resistor 1/6W
  • 240Ω  Resistor 1/6W

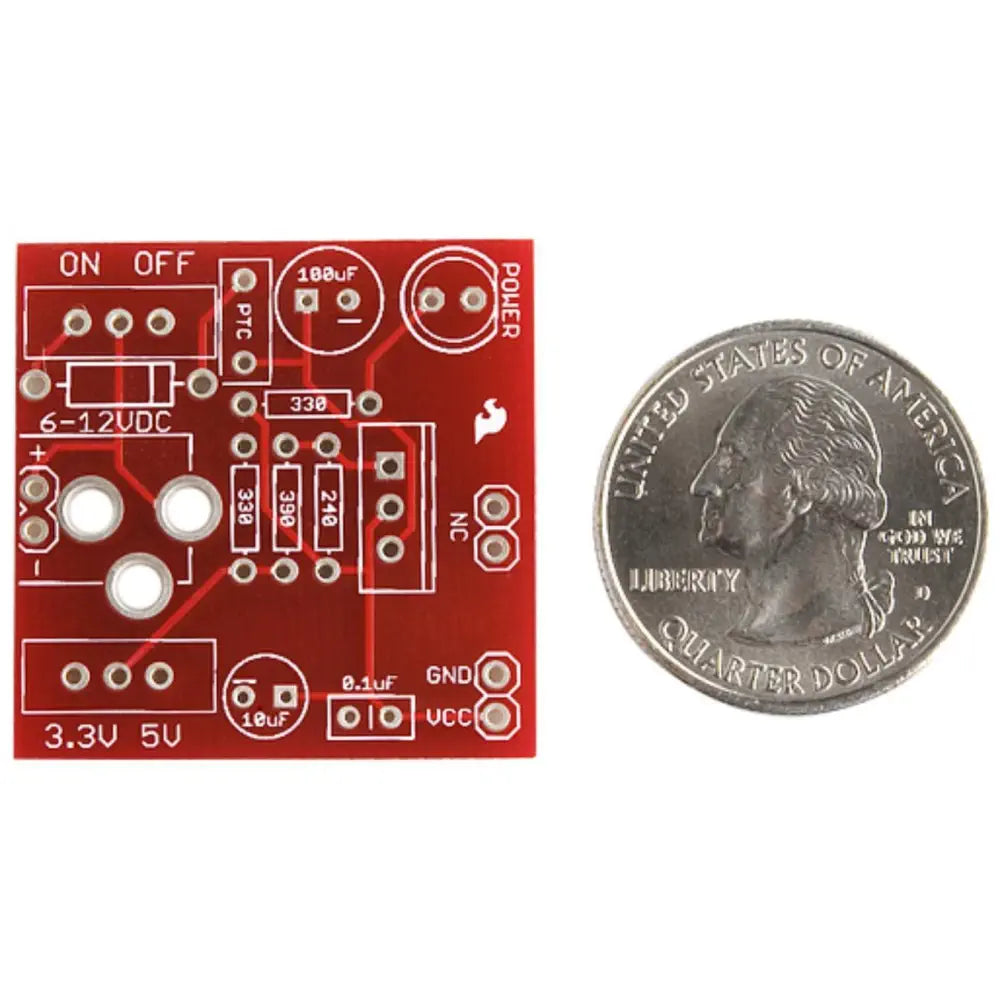

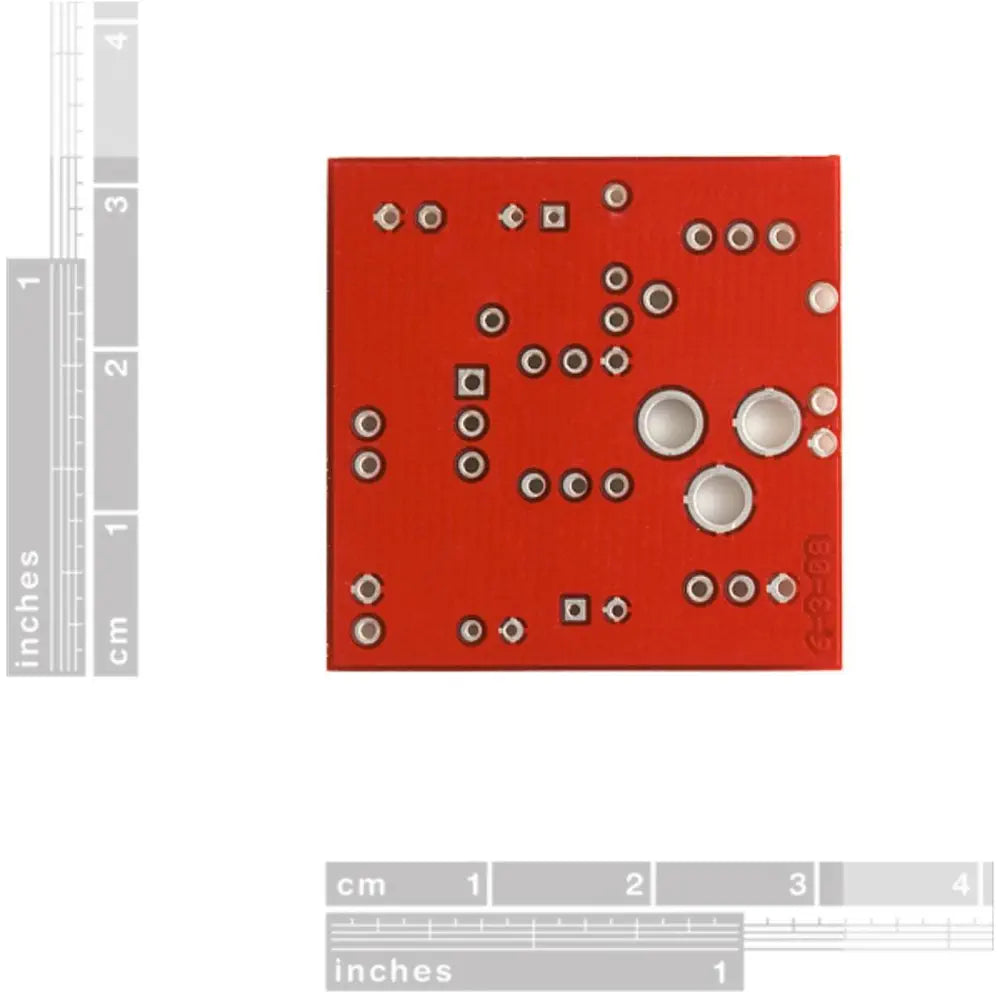

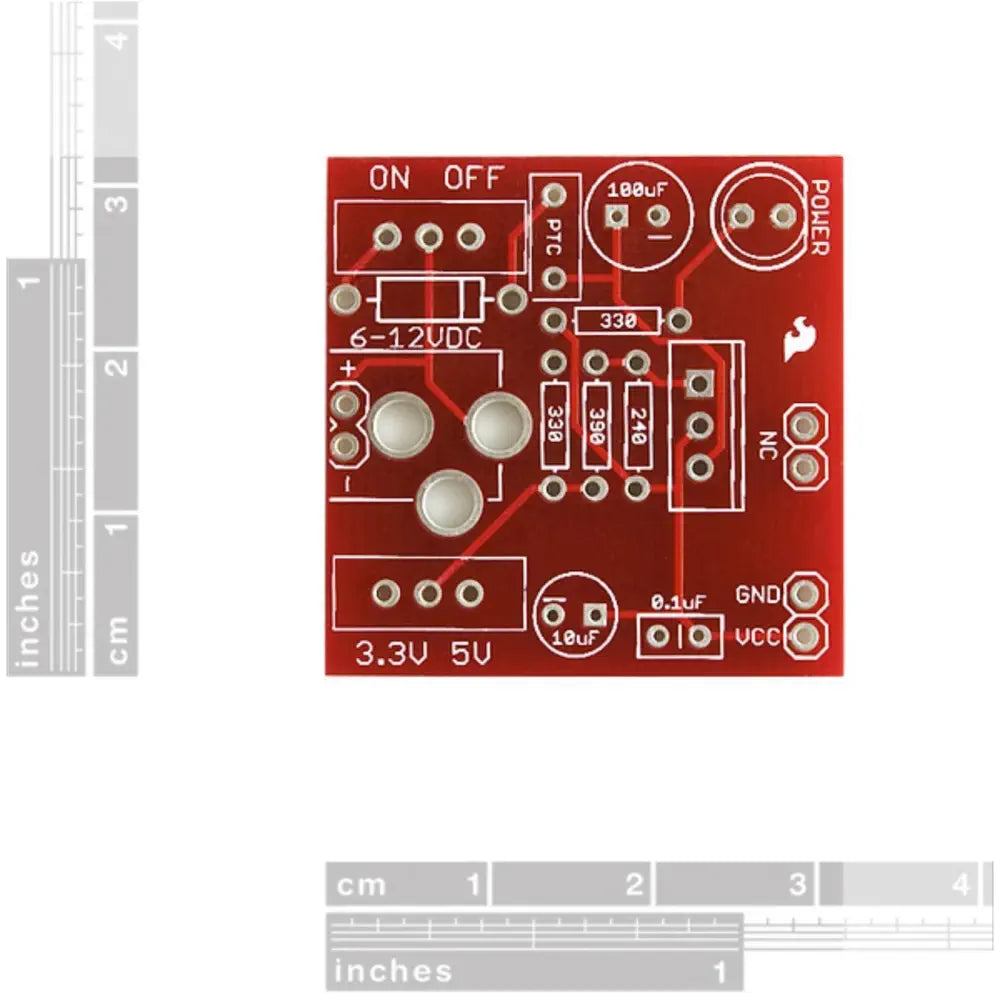

  • Bare PCB with Silkscreen Indicators
  • Recommended power supply: Wall Adapter Power Supply - 9VDC 650mA

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mr Magoo
Easy to Build but some observations

This circuit is easy to build, but since it does not come with a build sheet; besides soldering experience you should have access to resistor color code information (for correct placement of resistors). The only other component that is tricky to place is the Power LED which must be installed in the correct orientation (not marked like electrolytic caps; lead length is the clue). You best test the LED to determine the + pin orientation before soldering in place. I also found the output voltages to be 3.21 (for 3.3 setting) and 4.88v (for 5V setting). The last comment is that the breadboard pins are in line on the circuit board, but when you plug into the solderless breadboard the power bus lines are offset slightly which means the power supply board does not sit square on the breadboard (not a big issue just an observation). It would have been nice if the circuit board offset the breadboard output pins to match the breadboard.

k
kcwcc
Works as expected

3.3 and 5 V. Fit's standard BB. Must be assembled from a kit. Short circuit protected. Works.

R
Robert
Works Great!!

Works great, fairly simple to assemble as long as you can solder.

O
Okemobi
Easy to assembly and works well

Fits the breadboard and really easy to assembly even for beginners in electronics (as I am). Reliable so far.
