Description
- SparkFun Magnetic Imaging Tile - 8x8
- Visualize magnetic fields in real-time
- Integrates with additional units seamlessly
- Operates efficiently at 3.3V to 5V
- Contains 64 high-sensitivity Hall-effect sensors
- Tiles with 1-pixel gap for expansion

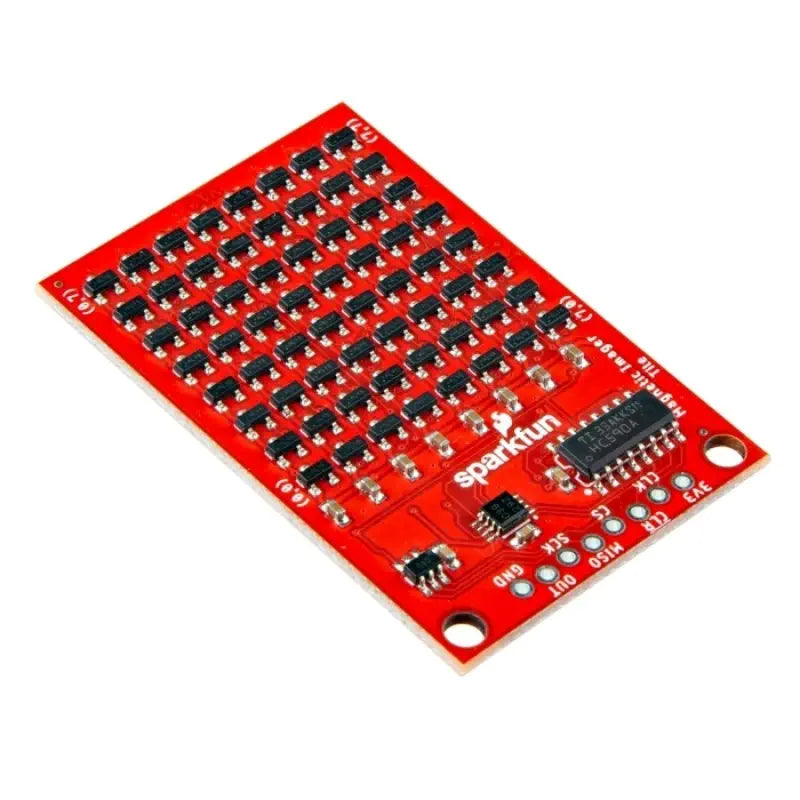

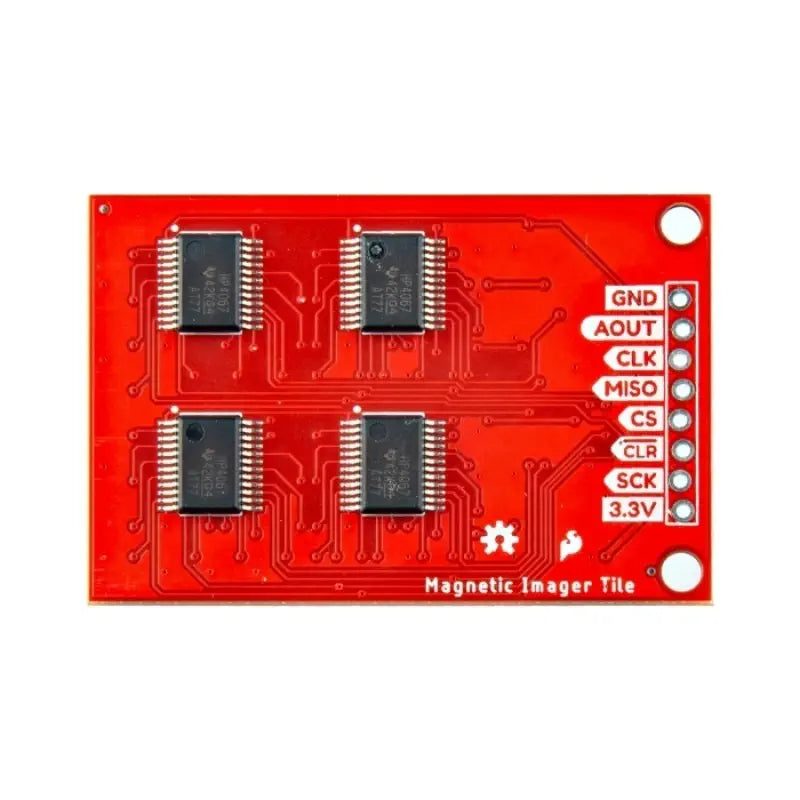

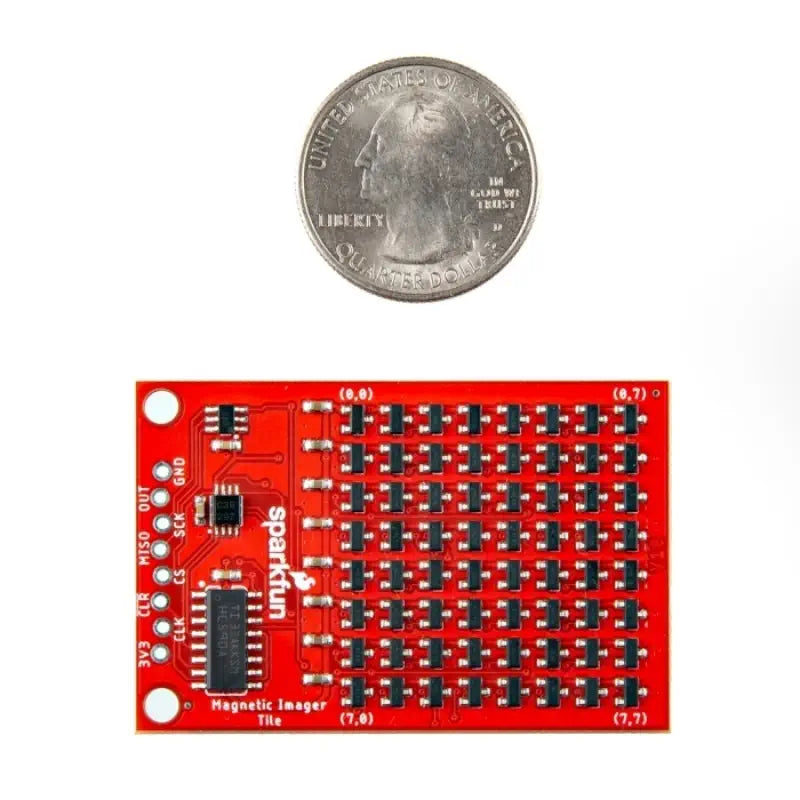

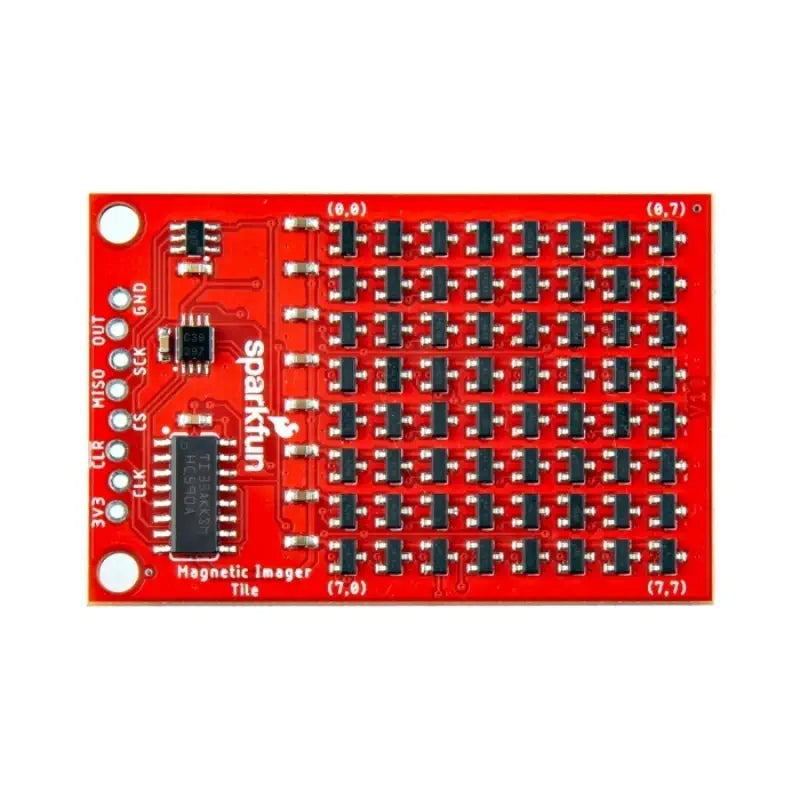

The SparkFun Magnetic Imaging Tile - 8x8 enables the visualization and analysis of magnetic fields in real-time through a sophisticated 64-pixel magnetic imaging board. This innovative device employs an 8x8 grid of high-sensitivity Hall-effect sensors, providing a dynamic and live visual representation of magnetic fields.
The tile is designed to be tileable, allowing for seamless integration with additional units to expand the imaging area. It operates efficiently within a voltage range of 3.3V to 5V, making it suitable for various applications requiring precise magnetic field detection and analysis.
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to: www.P65Warnings.ca.gov
- 52 x 34 mm (2.05 x 1.35")
- Sensor Array: 8x8 (64) DRV5053VA Hall Effect Sensors
- ADC: 16-bit, 100kSPS (AD7680)
- Magnetic Resolution: ~0.56 µT (5.6 mG) per bit
- Operating Voltage: 3.3V - 5V
- Current Draw: ~150mA at 3.3V
- Design: Tileable with a 1-pixel gap
