Tinysine TSA1701 Audio DSP Board

• Tinysine TSA1701 Audio DSP Board
• Features ADAU1701 DSP chip for audio processing
• Includes four potentiometers for fine-tuning
• Compatible with Sigma Studio via debug port
• Supports 5V USB or 9-30V DC power input

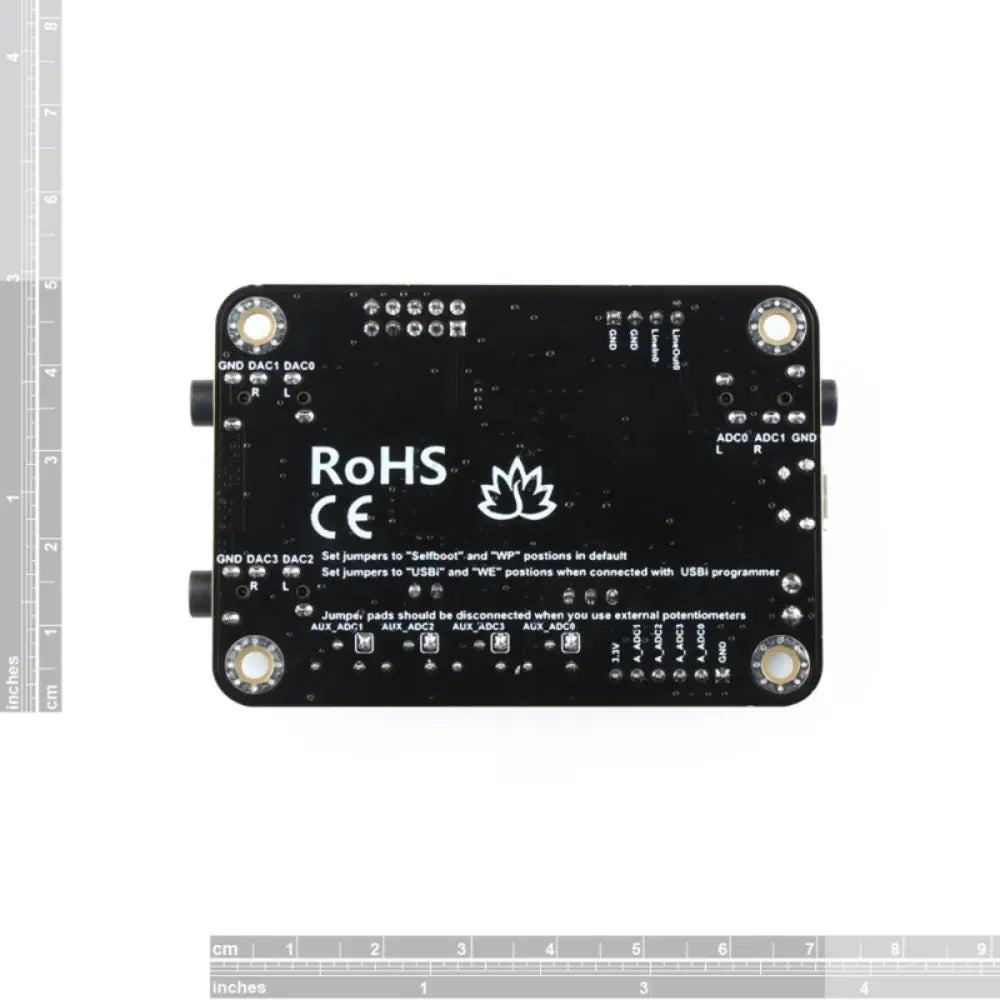

• Measures 7.2cm x 5cm

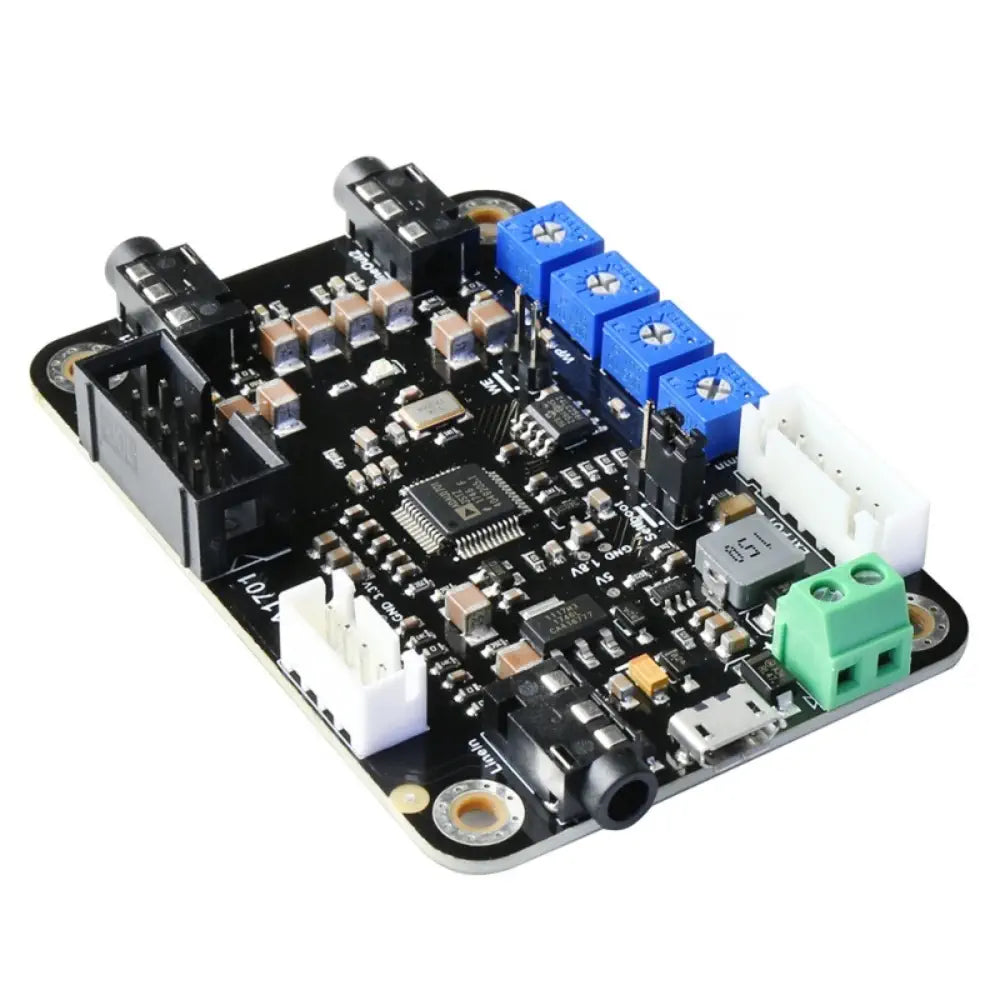

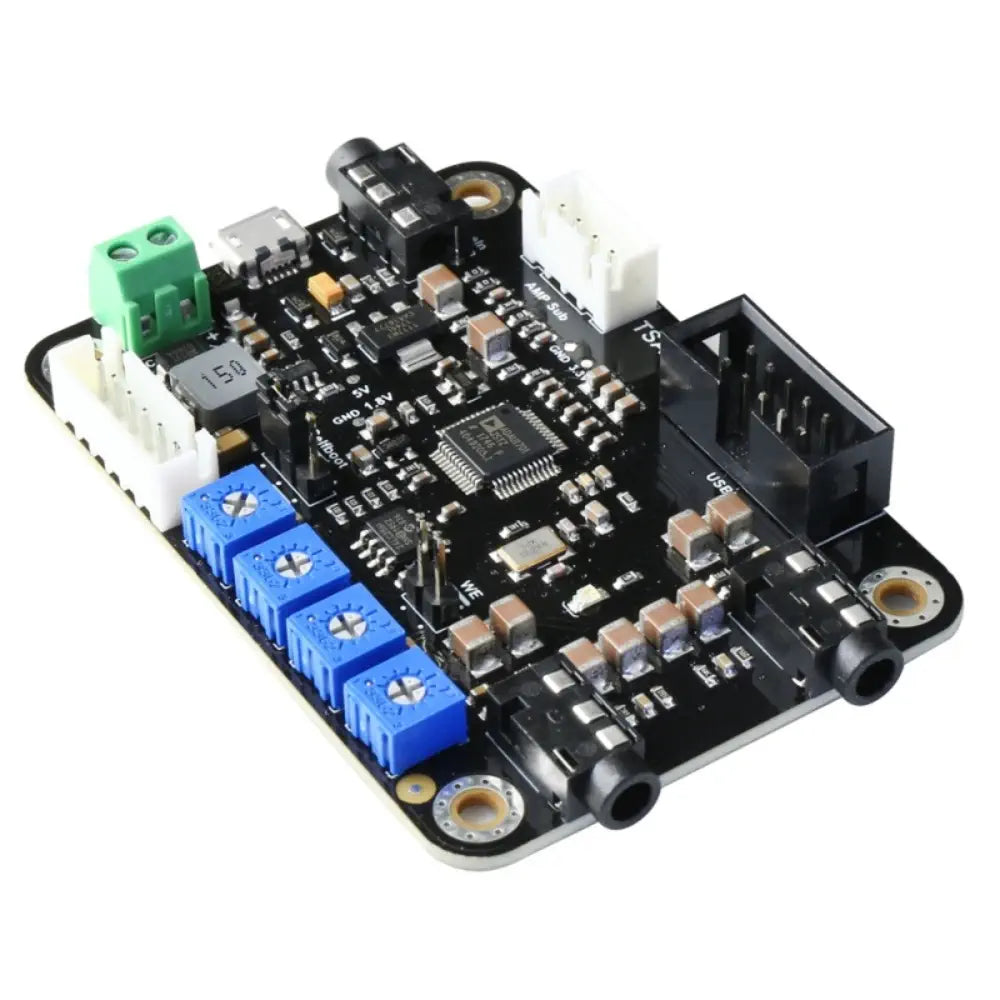

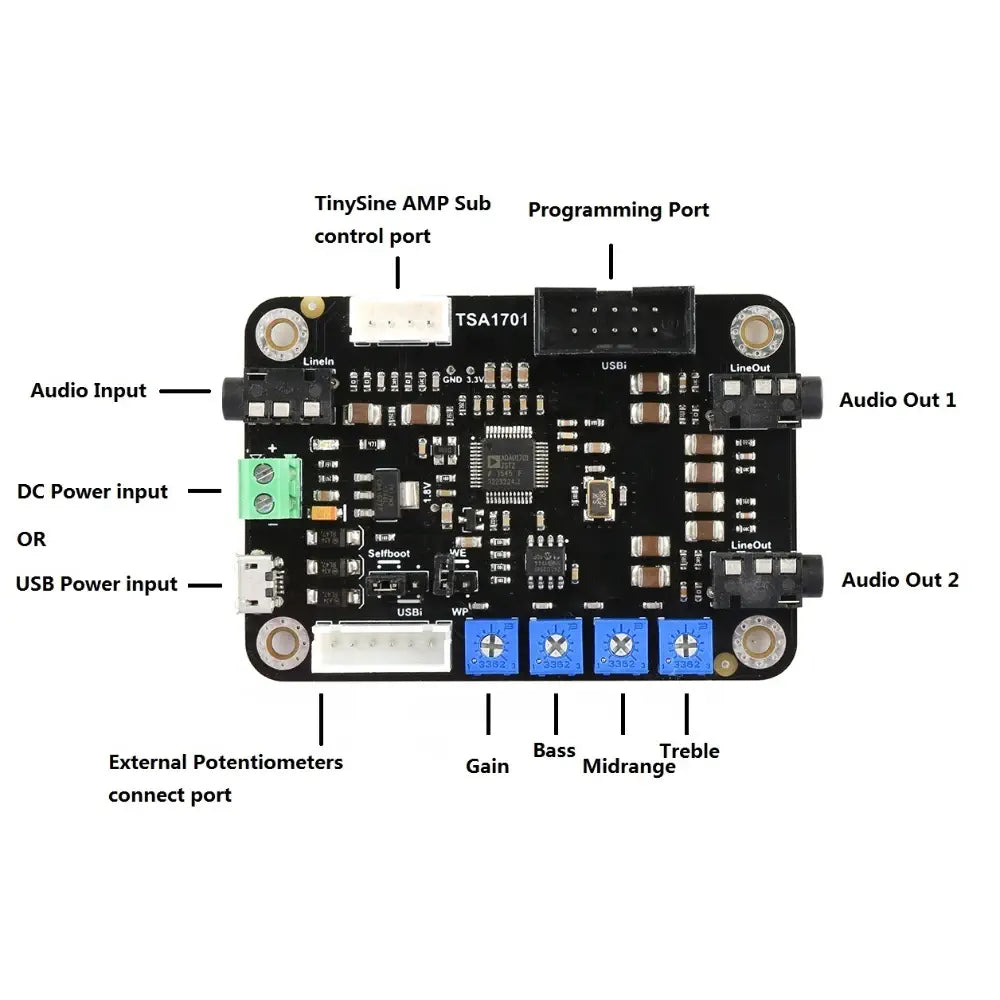

The Tinysine TSA1701 Audio DSP Board is a comprehensive digital signal processing module designed for audio applications. Central to its functionality is the ADAU1701 DSP chip, which facilitates the development of active loudspeaker systems and the conversion of audio formats from 2.0 to 2.1. This board is equipped with four potentiometers, allowing users to finely adjust gain, bass, midrange, and treble settings to achieve the desired audio output.

The module features a debug port compatible with Sigma Studio, enabling advanced programming capabilities through a USBi programmer. This allows for the implementation of additional audio processing functions such as equalization, crossover, bass enhancement, multiband dynamics processing, and delay compensation. The board supports a wide range of power inputs, accepting either a 5V micro USB or a DC power supply ranging from 9 to 30 volts.

Note: Ensure proper handling and connection to avoid electrical hazards.
