Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (UK)
Includes aluminum case and cooling fan
Expands connectivity with USB and HDMI ports
Supports all Compute Module 4 variants
Enhances storage with M.2 M key slot
Features 4K 30fps HDMI output
The Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (UK) is a comprehensive mini-computer solution designed specifically for the Raspberry Pi Compute Module 4. This product includes the CM4-IO-BASE-B base board, which facilitates the rapid assembly of a compact computing system. The package is enhanced with an aluminum alloy case, a power supply, and a cooling fan, ensuring efficient operation and protection of the components.
The device expands connectivity options by providing additional USB and HDMI ports via flexible flat cables, making it versatile for various applications. It supports all variants of the Compute Module 4 and offers networking capabilities through a Gigabit Ethernet RJ45 connector. The inclusion of an M.2 M key slot allows for the integration of communication modules or NVME solid state drives, enhancing storage and performance capabilities.
The board features a Raspberry Pi 40-pin GPIO header, dual USB 2.0 Type A ports, and additional USB connections via FFC connectors. It supports high-definition video output with dual HDMI ports capable of 4K 30fps output. Additional features include a real-time clock with a battery socket, a TF card socket for Compute Module 4 Lite variants, and a fan header for speed adjustment. The compact design includes precise cut-outs and clear labeling, facilitating easy access to all connectors and peripherals, making it suitable for advanced Raspberry Pi projects such as binocular vision systems.
1x Waveshare CM4-IO-BASE-BOX-B + USB HDMI Adapter for Raspberry Pi Compute Module 4 (UK)

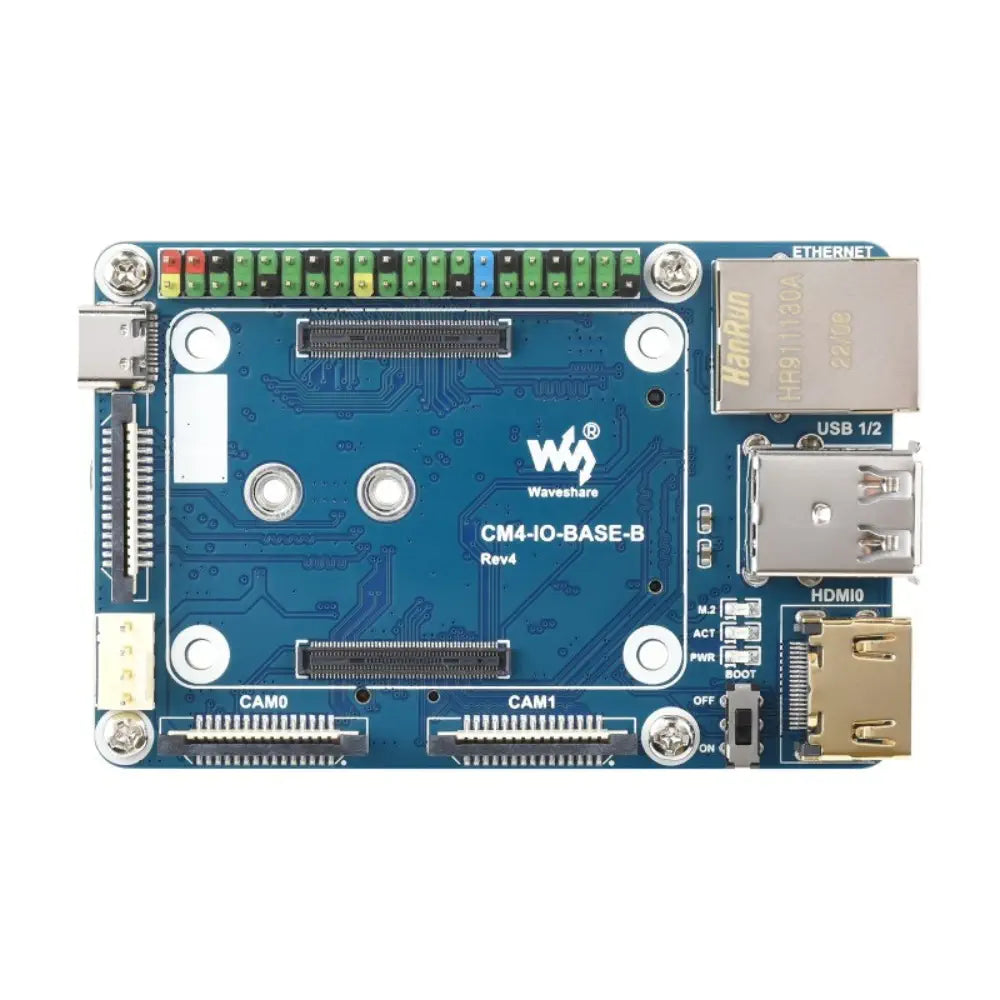

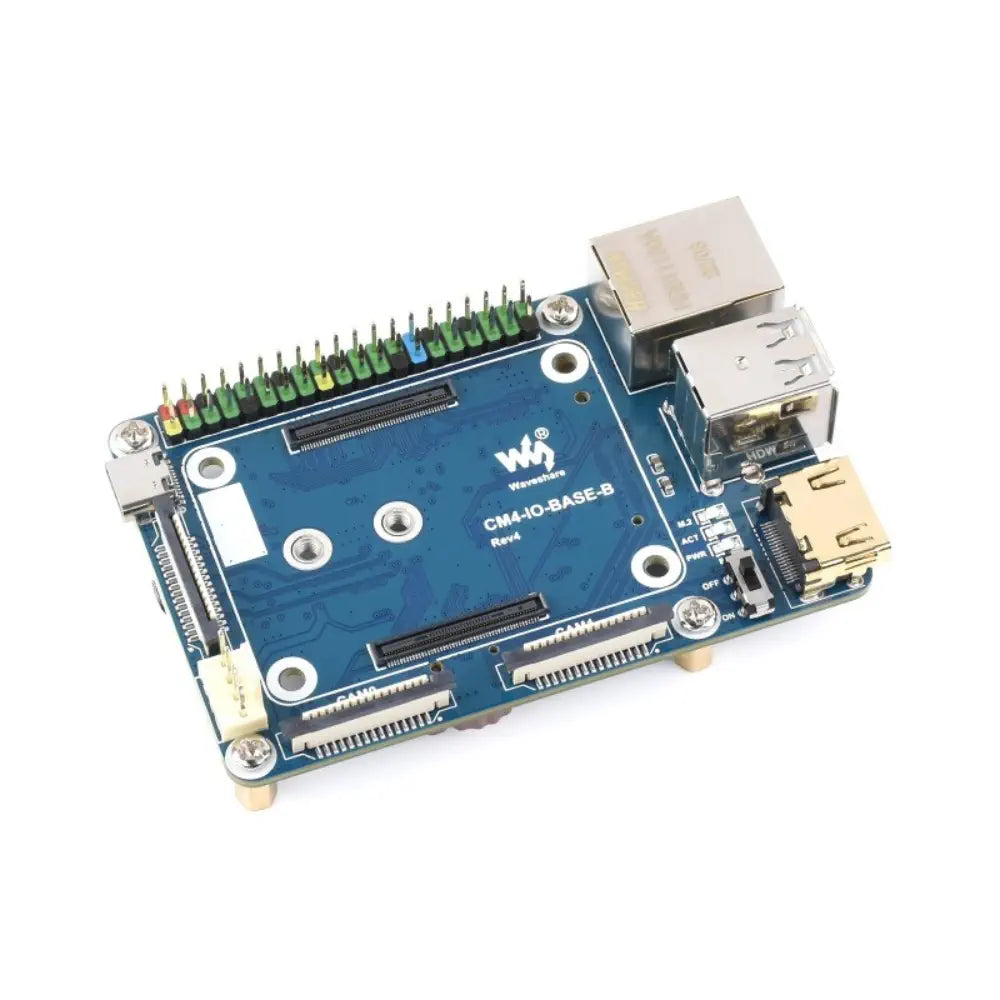

1x CM4-IO-BASE-B

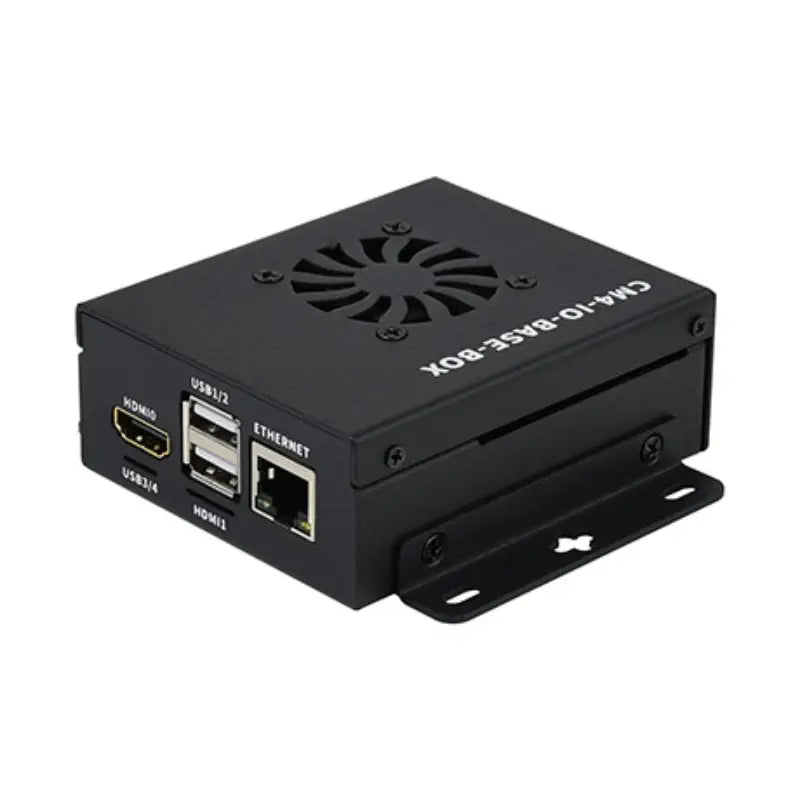

1x Metal case (top and bottom)
1x USB HDMI Adapter
1x FFC cable 6pin 1.0 pitch 60mm
1x FFC cable 20pin 0.5 pitch 60mm
1x USB-A to USB-C cable 1m
1x Solid State Drives mounting screw
1x Fan-4010-PWM-5V
1x 5V 3A USB-C power adapter
1x Screws pack
1x Screwdriver
85 x 56 mm
CM4 socket compatible with all variants of Compute Module 4
Networking: Gigabit Ethernet RJ45 connector
M.2 M Key supports communication modules or NVME Solid State Drives
Connector: Raspberry Pi 40PIN GPIO header
USB 2.0 Type A × 2, USB 2.0 via FFC connector × 2
Display: MIPI DSI display port (15-pin 1.0mm FPC connector)
Camera: MIPI CSI-2 camera port × 2 (15-pin 1.0mm FPC connector)
Video: HDMI port × 2 (including one port via FFC connector), supports 4K 30fps output
RTC: Real-time clock with battery socket and ability to wake Compute Module 4
Storage: TF card socket for Compute Module 4 Lite (without eMMC) variants
Fan header allows speed adjustment and measurement, 5V
