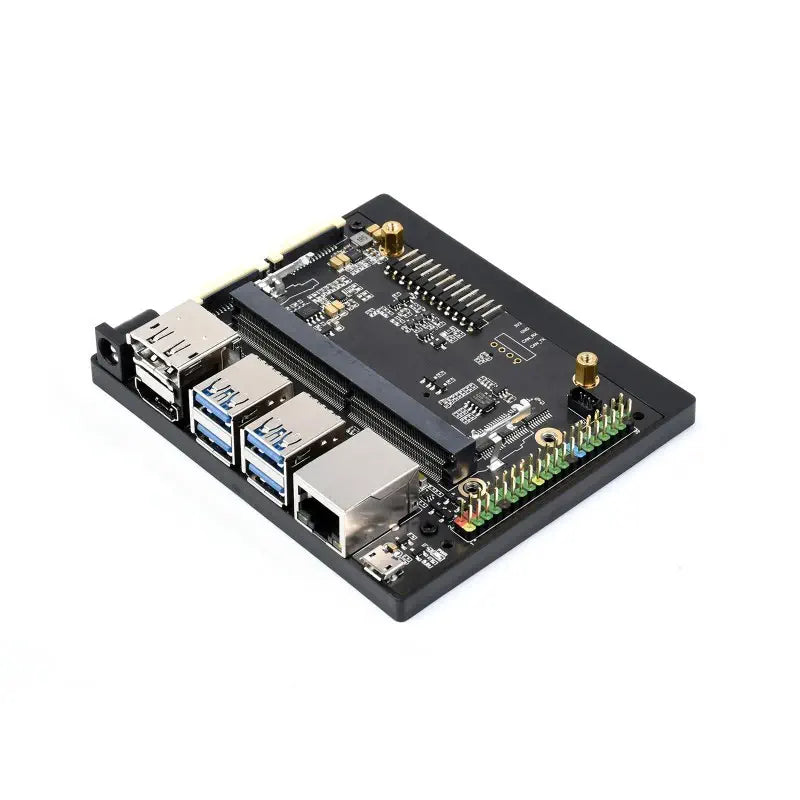

Waveshare Jetson IO Base B Base Board for Jetson Xavier NX

WaveshareSKU: RB-Wav-585
Manufacturer #: JETSON-IO-BASE-B

Price  :
Sale price £86.39

Tax included Shipping calculated at checkout

Stock  :
In stock, 3 units

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Waveshare Jetson IO Base B Base Board
  • Designed for Jetson Xavier NX
  • Offers numerous connectors

The Waveshare Jetson IO Base B Base Board for Jetson Xavier NX is designed to work with the NVIDIA Jetson Xavier NX modules. It offers numerous connectors, including M.2 Key E, M.2 Key M, 40-pin GPIO, Ethernet, USB 3.0, and HDMI and DisplayPort outputs. It can be used as a replacement for the original base board used in the NVIDIA Jetson Xavier NX development kit.

  • 1x Waveshare Jetson IO Base B Base Board for Jetson Xavier NX
  • 103 x 90.5 x 31 mm
  • Connection to Jetson Xavier NX
    • 260-pin SO-DIMM connector
  • USB
    • USB 2.0 Micro B (device only)
    • USB 3.1 (Gen2) hub to 4x Type A (host only)
  • Gigabit Ethernet (RJ45 connector with PoE and LEDs)
  • Display
    • HDMI ™ Type A (v2.0a / b)
    • VESA® DisplayPort ™ (v1.4)
  • Camera connectors
    • 2x 15 position flex connectors
    • CSI (2.5 Gb / s per pair): 1, x2 (each connector)
    • CLK camera, I2C and control
  • M.2 key of E.
    • PCIe (Gen3) x1 Lane, USB 2.0
    • I2S, UART, I2C
  • M.2 Key M connector
    • PCIe (Gen4) x4 path, control
  • Expansion connector
    • 40-pin (2x20) header
    • I2C (x2), SPI (x2), UART
    • I2S, audio clock, GPIO, PWM
  • User interface and indicators
    • Button header: power, reset and forced recovery
    • Power LEDs
  • Debugging/serial interface
  • Fan connector: 5 V, PWM and tach
  • Optional spare RTC battery basket
  • Optional CAN connector (5 MHz)
  • Power
    • DC jack: 9-20 V (19 V power supplied)
    • Optional PoE and Ethernet back power
    • 5.0 V main power supply: TPS53015
    • 3.3 V main power supply: TPS53015J
    • 1.8 V main power supply: TLV70018
    • 3.3 V AO power supply (always on): GS7116S5
    • USB VBUS supplies: AP22811AW5-7 (x2)
    • HDMI 5V power switch: APL3552ABI-TRG
    • HDMI 3.3V power supply: GS7616CS-R
    • DP 3.3V power switch: APL3552ABI-TRG
  • Operating temperature range: from 0 to 35 ⁰C
