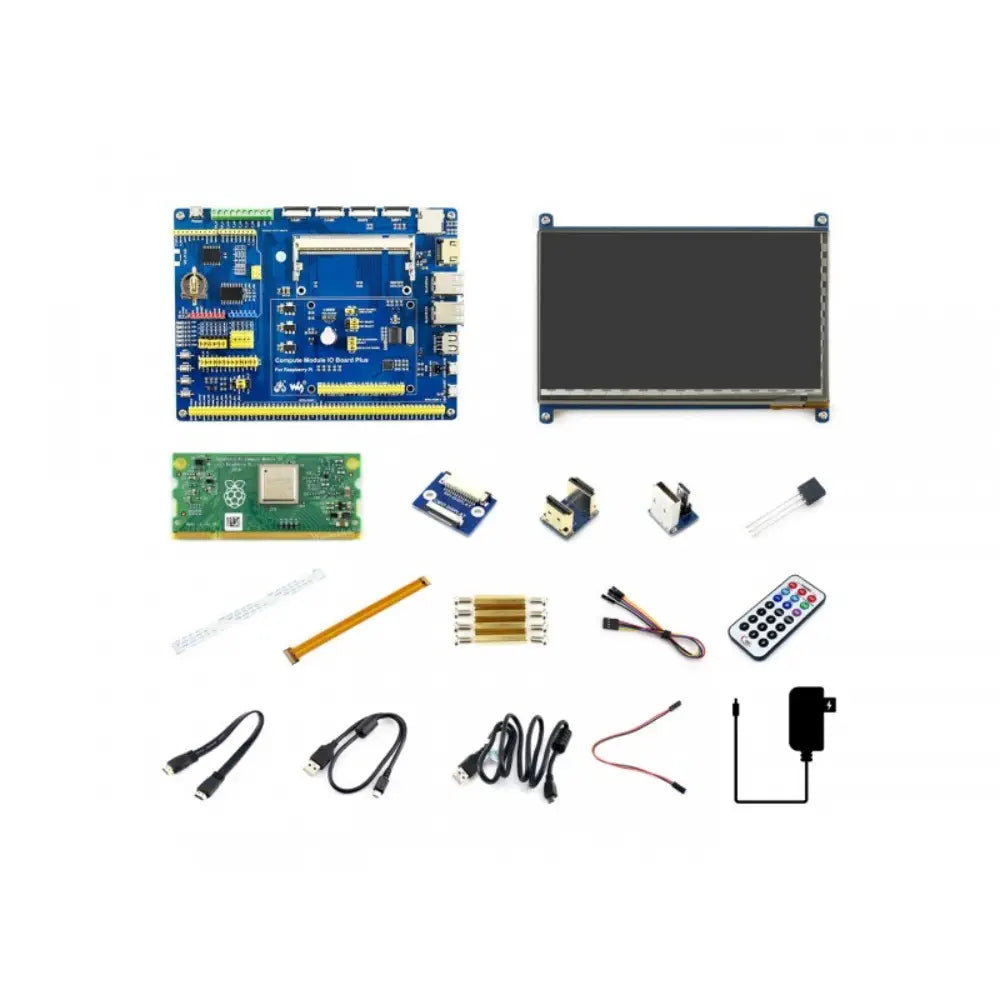

Waveshare Raspberry Pi Compute Module 3+ Development Kit Type B (no CM3+, EU)
Facilitates rapid project development
Supports Raspberry Pi HATs and Arduino shields
Includes high-resolution 7-inch touchscreen
Offers extensive connectivity options
Features onboard USB hub and IR receiver
The Waveshare Raspberry Pi Compute Module 3+ Development Kit Type B (no CM3+, EU) is designed to facilitate the evaluation and development of projects using the Raspberry Pi Compute Module 3+. This comprehensive kit includes essential components to streamline the development process, thereby reducing the time required to bring projects to fruition.
Central to this kit is the Compute Module IO Board Plus, which extends various interfaces from the Compute Module 3+, such as USB and HDMI, akin to a standard Raspberry Pi. This board is compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation and supports connectivity with Raspberry Pi HATs and Arduino shields. It features a Raspberry Pi GPIO header, an Arduino connectivity interface, and a 1-WIRE interface for single-bus devices. Additionally, it includes an onboard USB hub, IR receiver, and USB to UART for serial debugging, enhancing its versatility for various applications.
The kit also includes a 7-inch HDMI LCD (C), a high-resolution touch screen that facilitates human-machine interaction. This display supports popular mini PCs, including Raspberry Pi, and general desktop computers, offering capacitive touch control and compatibility with multiple operating systems without the need for additional drivers. The backlight can be turned off to conserve power, making it an efficient choice for extended use.
This development kit is ideal for developers seeking a robust platform to explore the capabilities of the Raspberry Pi Compute Module 3+. It provides a flexible and comprehensive solution for a wide range of applications, from prototyping to final product development.
1x Waveshare Raspberry Pi Compute Module 3+ Development Kit Type B (no CM3+, EU)
1x Compute Module IO Board Plus
1x 7inch HDMI LCD (C)
1x DS18B20
1x IR Remote Controller
1x LCD Adapter
1x HDMI Cable
1x HDMI Adapter
1x USB Adapter
1x RPI Screws Pack (4pcs)
1x 22pin FFC
1x RPI Zero V1.3 Camera Cable 15cm
1x Power Adapter 5V/3A Micro
1x USB Type A Plug to Micro B Plug Cable 35cm
2x USB Type A Plug to Micro B Plug Cable 120cm
2x Jumper Wire 4-pin to Separated Pins
2x Jumper Wire 2-pin 2.54-pitch 200mm
Broadcom BCM2837B0 processor
Cortex-A53 (ARMv8) 64-bit SoC at 1.2GHz
1GB RAM
eMMC Flash memory
200-pin SODIMM connector with 35U hard gold plating I/O pins
48 GPIO pins
2 I2C interfaces
2 SPI interfaces
2 UART interfaces
2 SD/SDIO interfaces (1 SD used for eMMC Flash on non-Lite variants)
1 HDMI 1.3a port
1 USB2 HOST/OTG port
1 DPI (parallel RGB display) interface
1 NAND (SMI) interface
1 4-lane CSI Camera Interface (up to 1Gbps per lane)
1 2-lane CSI Camera Interface (up to 1Gbps per lane)
1 4-lane DSI Display Interface (up to 1Gbps per lane)
1 2-lane DSI Display Interface (up to 1Gbps per lane)
Supports various operating systems, including Windows 10 IoT-specific version
7-inch IPS screen with 1024x600 hardware resolution
Capacitive touch control
Compatible with popular mini PCs such as Raspberry Pi and BB Black, as well as general desktop computers
Backlight can be turned off to reduce power consumption
Compatible with the Compute Module IO Board V3 from the Raspberry Pi Foundation
Raspberry Pi GPIO header for connecting various Raspberry Pi HATs
Arduino connectivity, supporting Arduino shields
1-WIRE interface for connecting single-bus devices like DS18B20
4 keys, 4 LEDs, 1 buzzer for I/O testing
Onboard USB hub for connecting additional USB devices
IR receiver with IR remote control capability
Onboard USB to UART for serial debugging
Sensor interface
10-bit ADC, 38KSPS, 11 channels (6 channels for Arduino interface, 5 channels for sensors)
