Lynxmotion - A4WD3 Rugged Rover Frame Kit

LynxmotionSKU: RB-Lyn-1120
Manufacturer #: A4WD3-KT

Price  :
Sale price £418.52

Tax included Shipping calculated at checkout

Stock  :
Only 1 unit left

Payments and Security

Apple Pay Mastercard PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Lynxmotion - A4WD3 Rugged Rover Frame Kit
  • 4WD Mobile robot frame for remote controlled / autonomous robotics
  • Rugged frame incorporates seals for water & dust resistance
  • Includes four planetary gear motors with integrated magnetic encoders
  • Requires assembly and additional parts

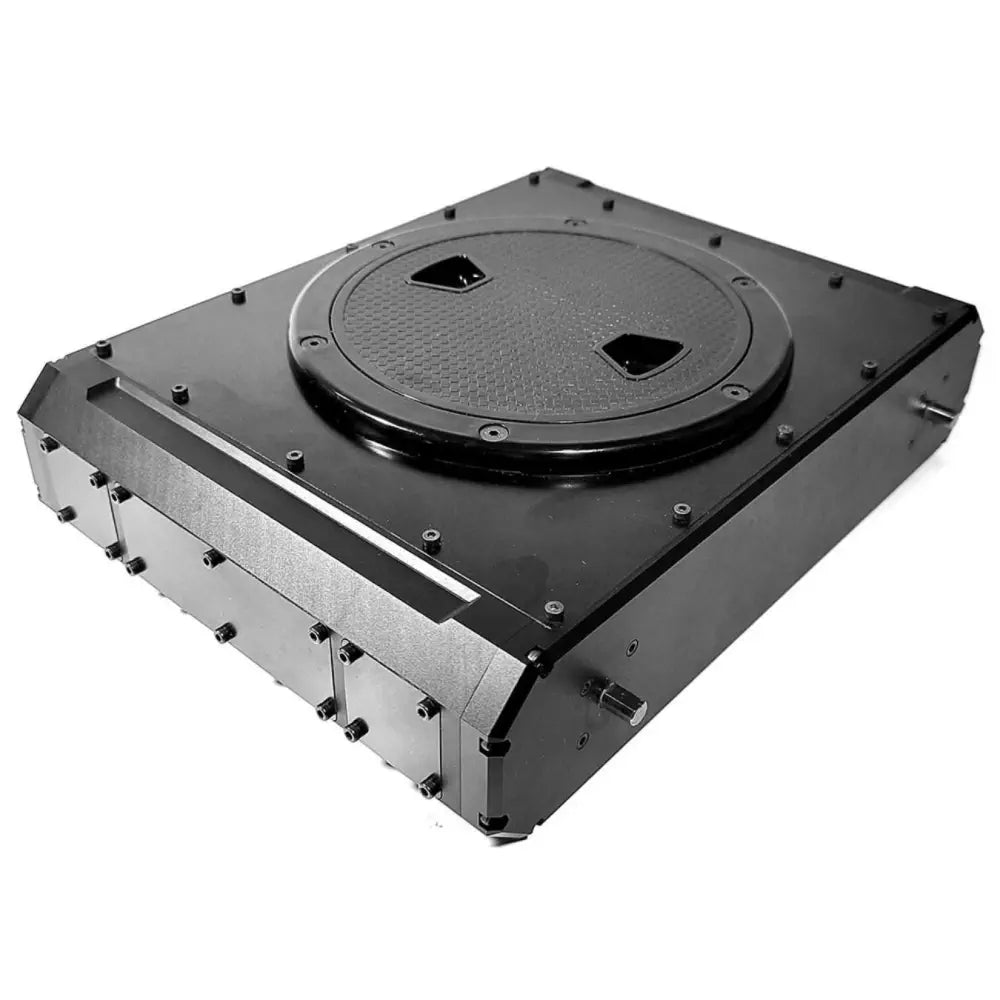

The Lynxmotion A4WD3 Rugged Rover Frame Kit is a general purpose four wheel drive frame which allows a user to add hubs, wheels, electronics, battery and accessories to create their own semi-custom mobile platform.

Lynxmotion - A4WD3 Rugged Rover Frame Kit - ISO

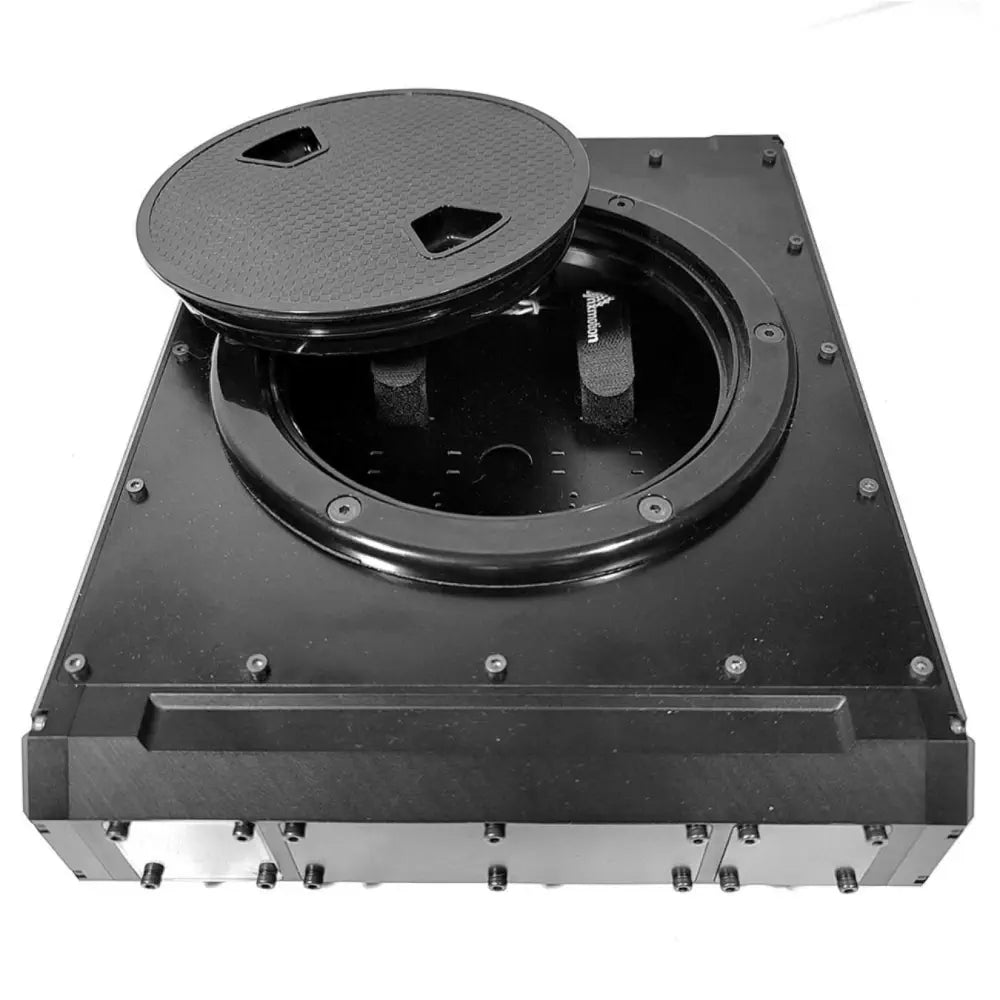

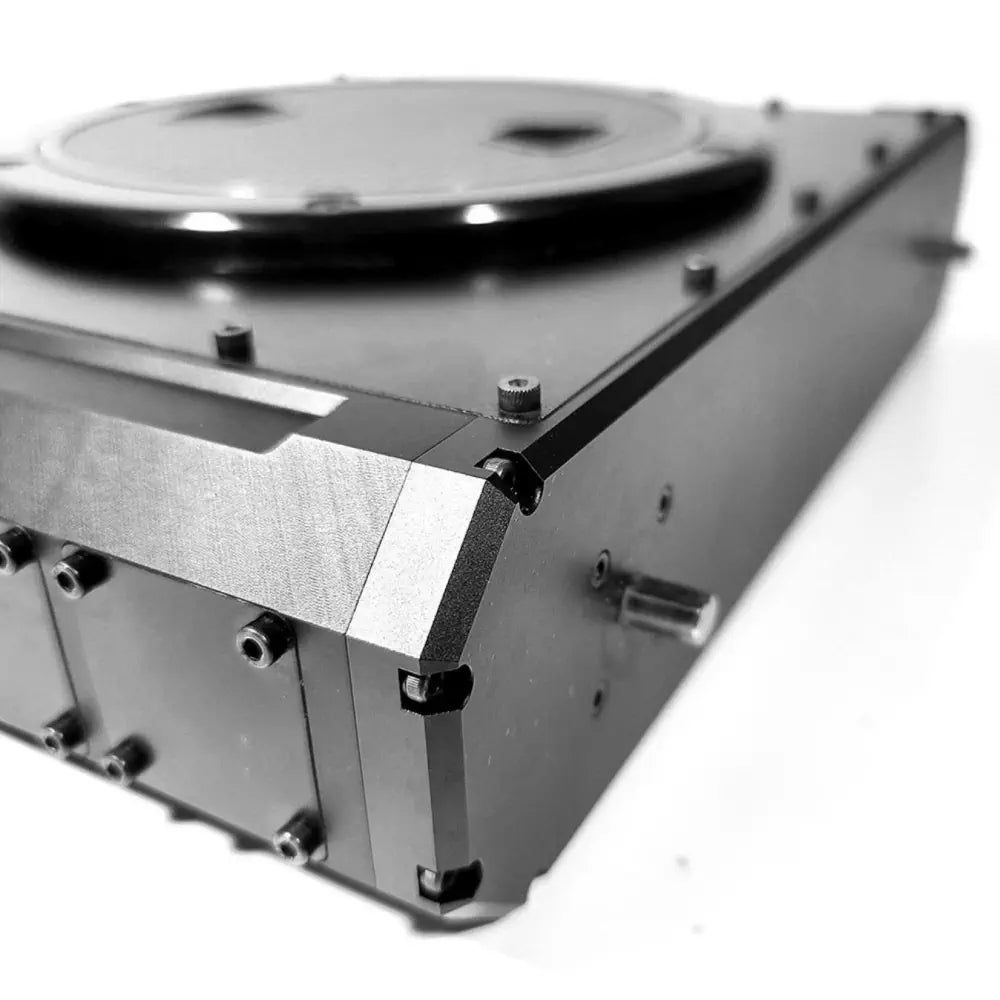

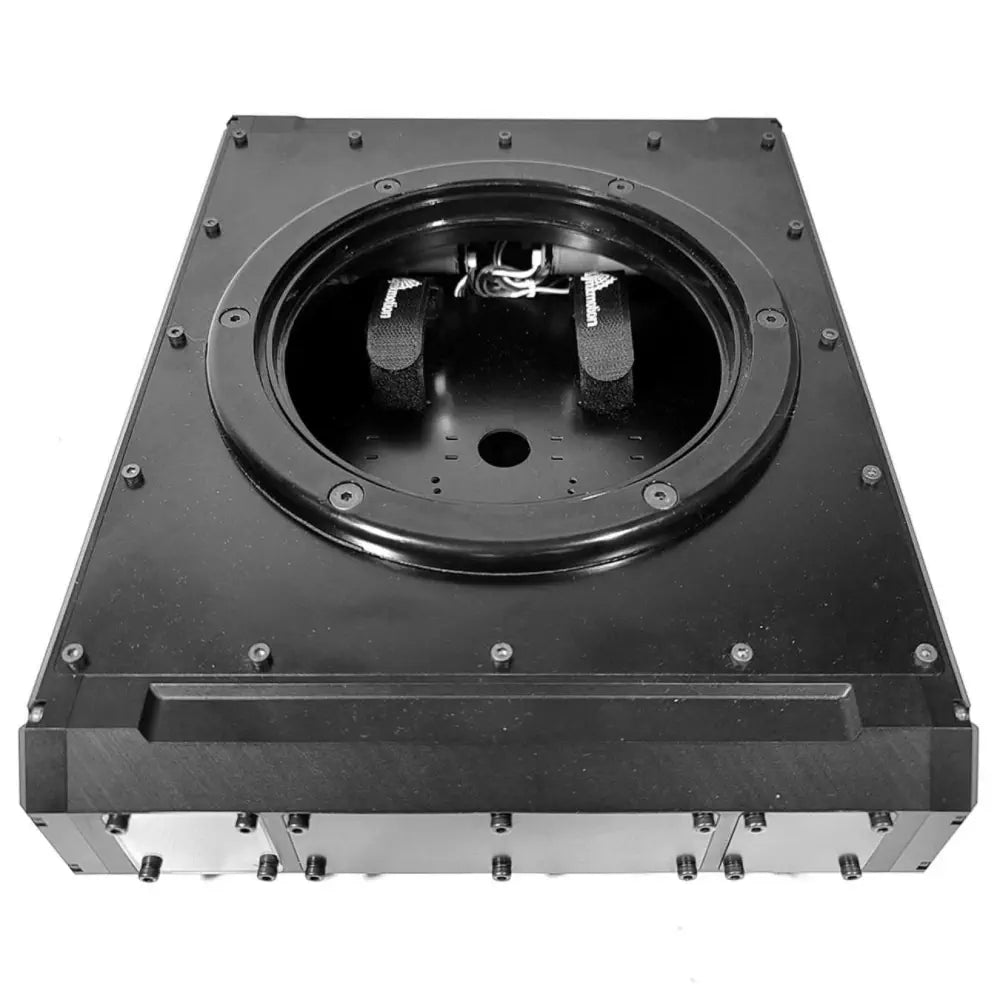

The machined aluminum frame integrates seals around each motor shaft, and solid rubber cord between the frame and all panel openings, making it dust and water resistant. A large marine hatch on the top panel provides easy access to internal parts as well as providing the ability to quickly swap or recharge batteries. Aside from the internal electronics mounting plate, the platform is symmetric and can be inverted.

Lynxmotion - A4WD3 Rugged Rover Frame Kit - Hatch

The rover uses four powerful 12 V DC motors coupled to 27:1 all metal planetary gears. The rear shaft of each motor is equipped with a magnetic encoder which provides 12 pulses per revolution (PPR). The motor’s D-shaped output shaft is 8 mm in diameter, so choose appropriate hubs (sold separately).

Lynxmotion - A4WD3 Rugged Rover Frame Kit - Wheeled

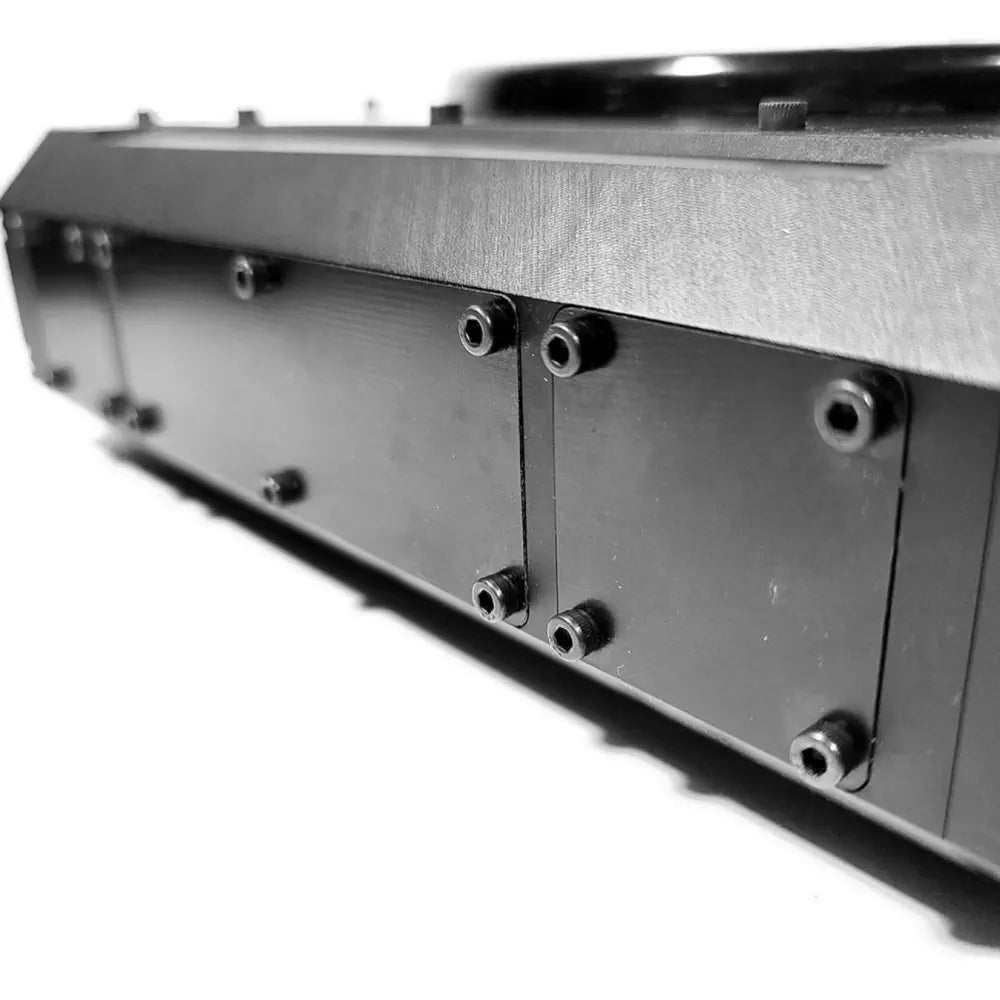

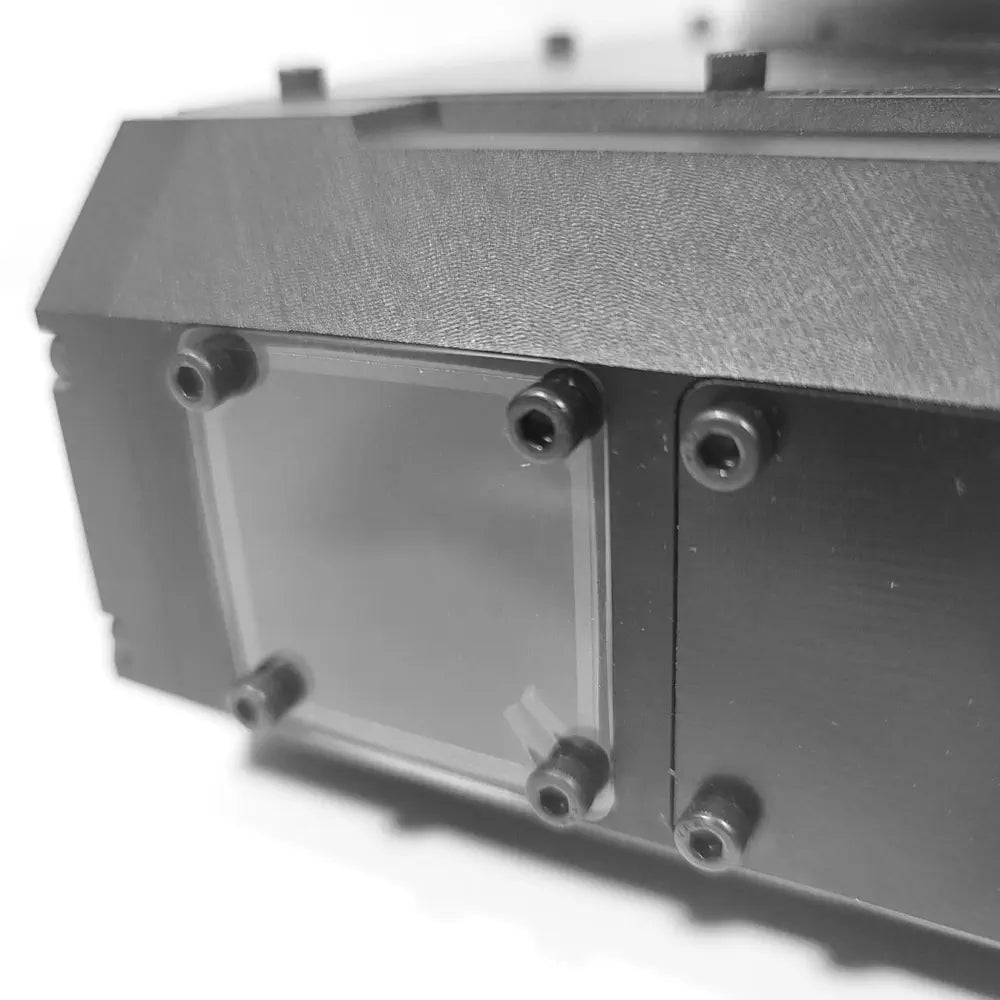

Access panels are made of G10 composite and are intended to allow users to machine openings to add their own components. Four square transparent polycarbonate panels are also included which allow for an internally mounted camera and/or LED lights for increased visibility (Lynxmotion - A4WD3 Red Brake & White High Power LED Module ).

Lynxmotion - A4WD3 Access Window

Applications

  • Remote inspection (pipeline, building, foundation)
  • Security / Police / SWAT / Military
  • Indoor / outdoor development platform

Frame Features

  • 4x planetary geared DC motors (12 V) with rear encoders
  • Machined aluminum frame with G10 composite plates
  • Shaft seals & solid rubber cord for water and dust resistance
  • Internal mounting plate for electronics & battery
  • 2x CNC machined aluminum front / rear brackets
  • 2x CNC machined aluminum side plates
  • 4x Polycarbonate window
  • 4x Shaft seals
  • 1x Hatch & seals
  • 10ft of 2mm solid rubber cord
  • 4x DC gear motors w/ encoders and 30 mm wires
  • All G10 (fiberglass) panels (bottom, top, front, back, electronic)
  • All Hardware for assembly
  • Hex keys (2.5 mm, 3 mm)

What’s Needed

  • Wheels and hubs (for 8 mm diameter shaft)
  • Battery capable of at least 16 A continuous discharge rating (at max power)

3S (11.1 V ) Lithium or 12 V NiMh
3 Ah to 10 Ah suggested capacity (determines operating time)

  • Battery charger corresponding to battery selected
  • DC Motor controller (12 V, 4 A+ continuous rating per motor)

Sabertooth Dual 12A 6V-24V Regenerative Motor Driver

Sabertooth Dual 12A 6V-24V R/C Regenerative Motor Driver

  • Optional silicon for added waterproofing
  • Controller (Microcontroller, Radio Control, Single Board Computer etc.)

Size

  • Length: 320 mm / 12.598 inch
  • Width: 241 mm / 9.488 inch
  • Height: 78.5 mm / 3.091 inch

Lynxmotion - A4WD3 Rugged Rover Frame Kit - Dimensions - Click to Enlarge

A4WD3 Chassis

  • Weight: 3.12 kg (6.89 lbs)
  • Rating: Water and dust resistant
  • Chassis: Aluminum frame & G10 (fiberglass) Pannels

Motors

  • Output Shaft: D-Shape 8mm
  • Operating Voltage: 12 VDC
  • Gears: Metal planetary gear
  • Unload Speed: 170 RPM (±10%)
  • Loaded Speed: 145 RPM (±10%)
  • Torque: 11.5 kg.cm (9.98 lb.in)
  • Gear Ratio: 51:1
  • Current: ≤ 3 A

Encoder

  • Operating Voltage: 5 V
  • Signal: Square wave AB 90 deg
  • Pulse: 12 PPR
  • Frequency: 800 kHz
